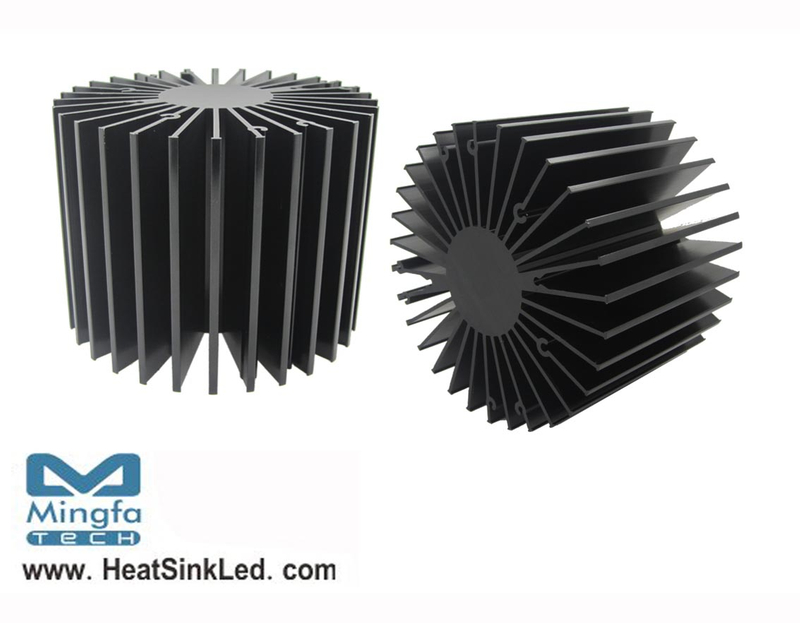

SimpoLED-CRE-13580 for Cree Modular Passive LED Cooler Φ135mm

Quantity:
SimpoLED-CRE-13580 for Cree Modular Passive LED Cooler Φ135mm

* The SimpoLED-CRE13580 Cree Modular Passive LED Coolers are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2100 to 8100 lumen.
* Thermal resistance range Rth  0.71°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp CXA1310,CXA1507,1512,1520, CXA1816,1820 ,1830,1850, CXA2520,2530 LED ArrayCOB engines
* Diameter 135mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-CRE-13580 for Cree Modular Passive LED Cooler Φ135mm.pdf
