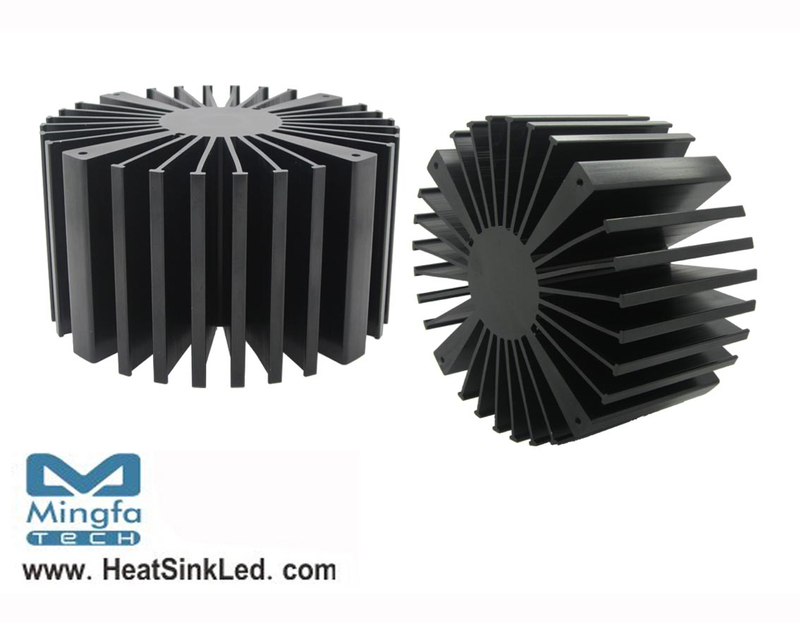

* The SimpoLED Citizen Modular Passive LED Coolers are specifically designed for luminaires using the Citizen LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3600 to 12000 lumen.
* Thermal resistance range Rth 0.56°C/W.
* Modular design with mounting holes foreseen for direct mounting of Citizen CLL030、CLL032、CLU034、CLL040,CLL042,CLU044,CLL050and CLL052 COB engines.
* Diameter 160mm - standard height 100mm Other heights on request.
* Extruded from highly conductive aluminum.
