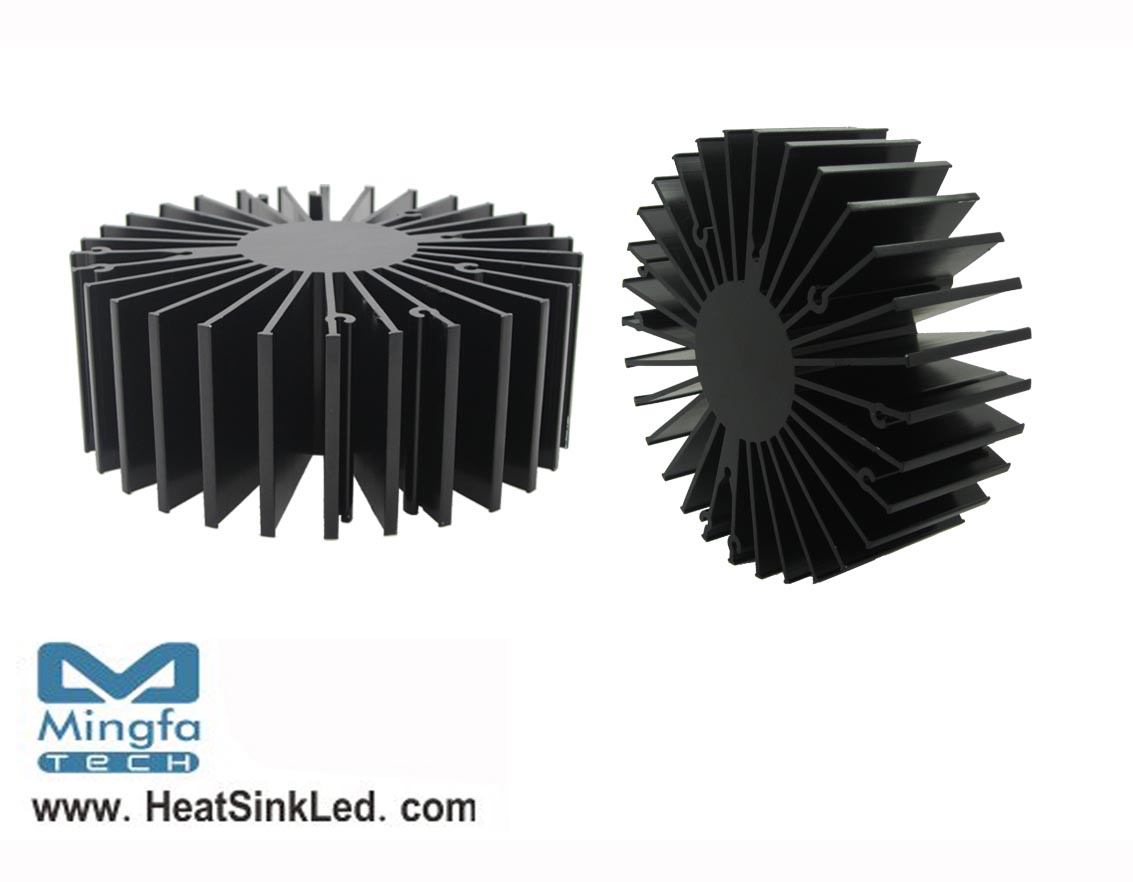

SimpoLED-CIT-13550 for Citizen Modular Passive LED Cooler Φ135mm

Quantity:
SimpoLED-CIT-13550 for Citizen Modular Passive LED Cooler Φ135mm

* The SimpoLED-CIT-13550 Citizen Modular Passive LED Coolers are specifically designed for luminaires using the Citizen LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2100 to 8000 lumen.
* Thermal resistance range Rth 0.65°C/W.
* Modular design with mounting holes foreseen for direct mounting of Citizen CLU024、 CLL030、CLL032,CLU034 and CLU044 COB engines.
* Diameter 135mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

SimpoLED-CIT-13550 for Citizen Modular Passive LED Cooler Φ135mm.pdf
