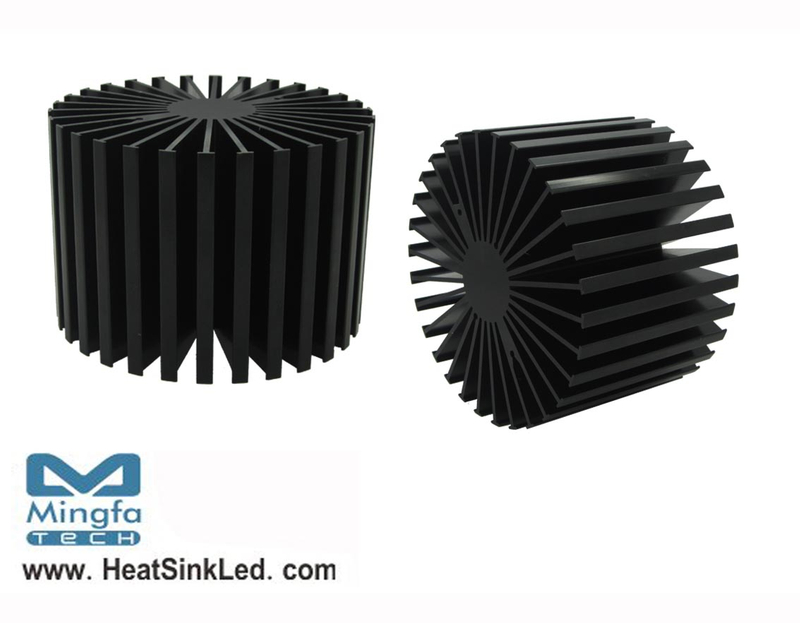

SimpoLED-CIT-11780 for Citizen Modular Passive LED Cooler Φ117mm
* The SimpoLED-11780 Citizen Modular Passive LED Coolers are specifically designed for luminaires using the Citizen LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2200 to 7400 lumen.
* Thermal resistance range Rth 0.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Citizen CLL030,CLL032,CLU034 and CLL042 COB engines.
* Diameter 117mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
Download PDF
SimpoLED-CIT-11780 for Citizen Modular Passive LED Cooler Φ117mm.pdf
