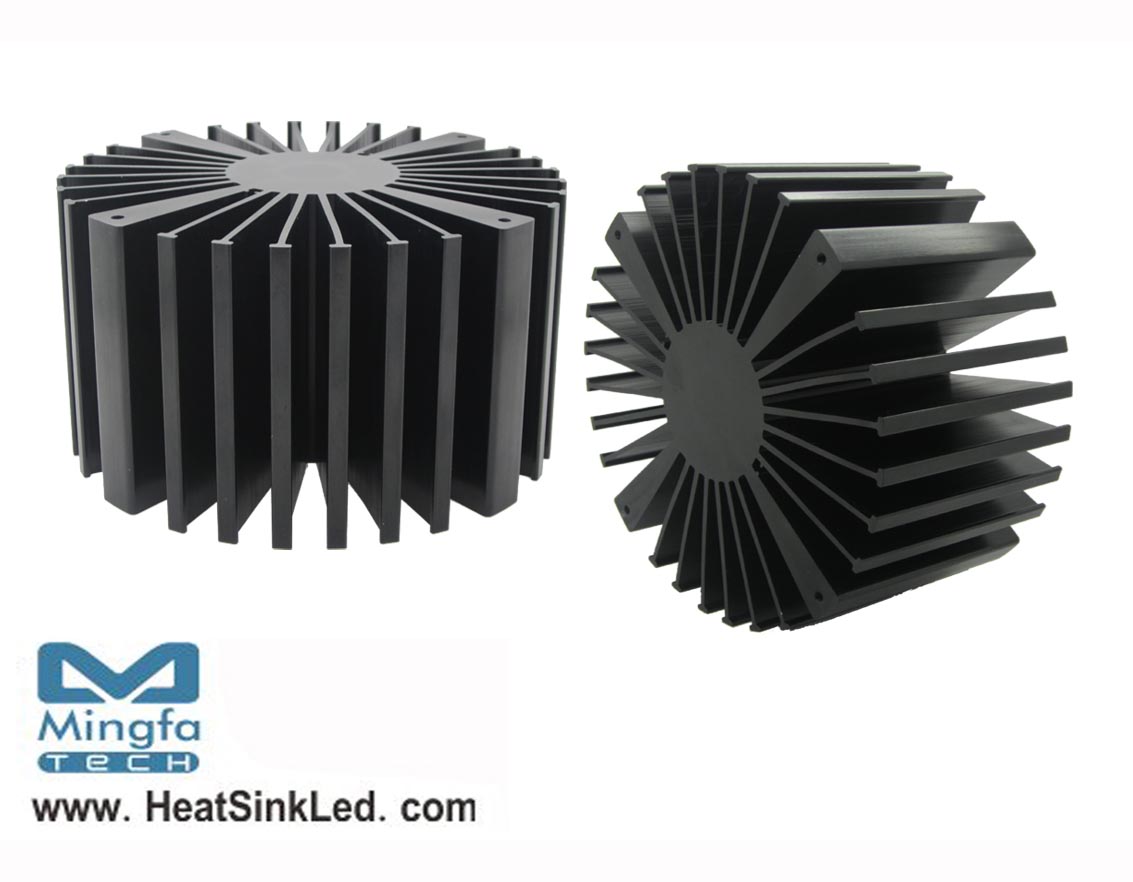

SimpoLED-ADU-160100 for Adura Modular Passive LED Cooler Φ160mm
* The SimpoLED-ADU-160100 Adura Modular Passive LED Coolers are specifically designed for luminaires using the Adura LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 4800 to 12000 lumen.
* Thermal resistance range Rth 0.48°C/W.
* Modular design with mounting holes foreseen for direct mounting of Adura LOB series engines.
* Diameter 160mm - standard height 100mm Other heights on request
* Extruded from highly conductive aluminum.
