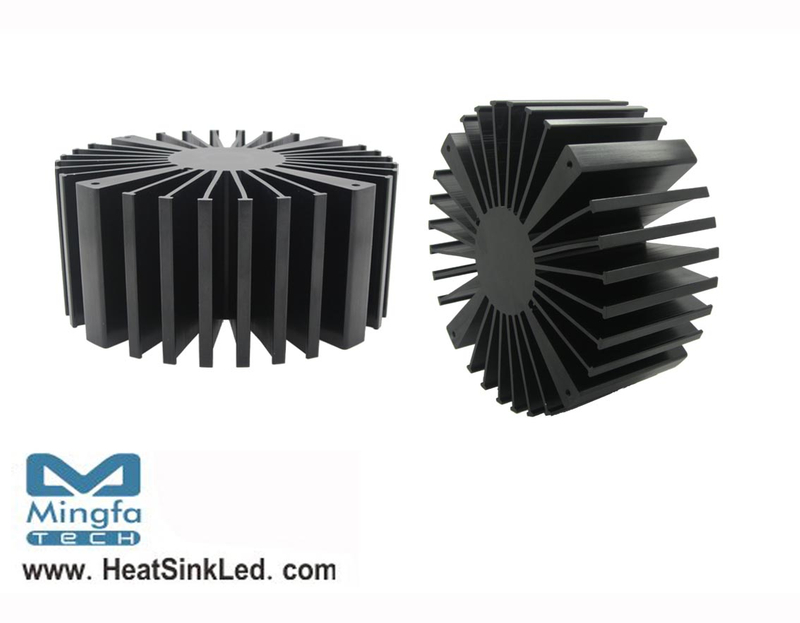

SimpoLED-16050 Modular Passive LED Star Heat Sink Φ160mm

Quantity:

SimpoLED-16050  Modular Passive LED Cooler Φ160mm

* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* Thermal resistance range Rth 0.68°C/W.
* Modular design with mounting holes foreseen for direct  mounting of a wide range of LED modules and COB's:
* Diameter 160mm - Standard height 50mm , Other heights on request.
* Extruded from highly conductive aluminum.
* 2 standard colors - clear anodized - black anodized
 Zhaga Book 3 Spot Light Modules: Bridgelux , Citizen, Cree, Tridonic, Luminus,Prolight, Lumileds,Osram,Lustrous,SamSung ……


Download PDF

SimpoLED-16050  Modular Passive LED Cooler Φ160mm.pdf
