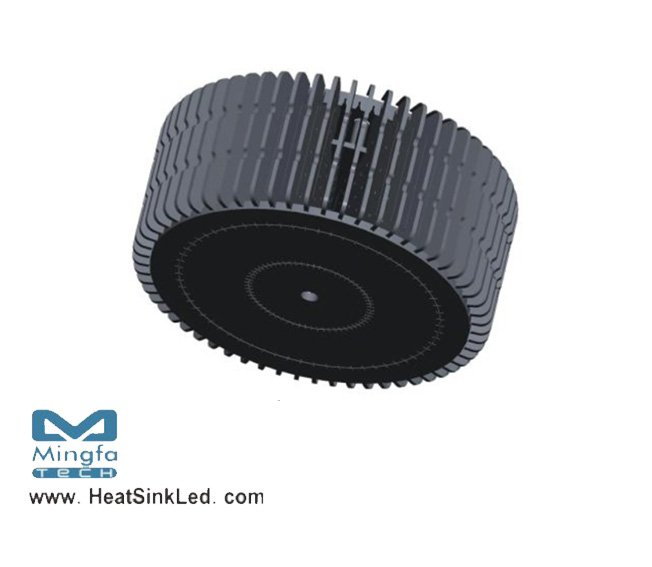

HibayLED-24088 Modular Fastening LED Heat Sinks Φ240mm
*The HibayLED-24088 Modular Fastening LED Heat Sinks (Passive) are specifically designed for luminaires using the PBC modules engines.
* Modular design with mounting holes foreseen for direct mounting of PCB modules.
* For Highbay designs from 8000 to 14000 lumen.
* Thermal resistance range Rth 0.45°C/W.
* Modular design with mounting holes foreseen for direct mounting of 5630-8C22B and 5730-5C16B…… series chips."
* Diameter 240.0mm - standard height 88.0mm.
Download PDF
HibayLED-24088 Modular Fastening LED Heat Sinks Φ240mm
*The HibayLED-24088 Modular Fastening LED Heat Sinks (Passive) are specifically designed for luminaires using the PBC modules engines.
* Modular design with mounting holes foreseen for direct mounting of PCB modules.
* For Highbay designs from 8000 to 14000 lumen.
* Thermal resistance range Rth 0.45°C/W.
* Modular design with mounting holes foreseen for direct mounting of 5630-8C22B and 5730-5C16B…… series chips."
* Diameter 240.0mm - standard height 88.0mm.
