Heat Sinks—Keep Electronic Temperature Down and Performance Up

Views:7     Author:Site Editor     Publish Time: 2017-06-30      Origin:Site

An Overview

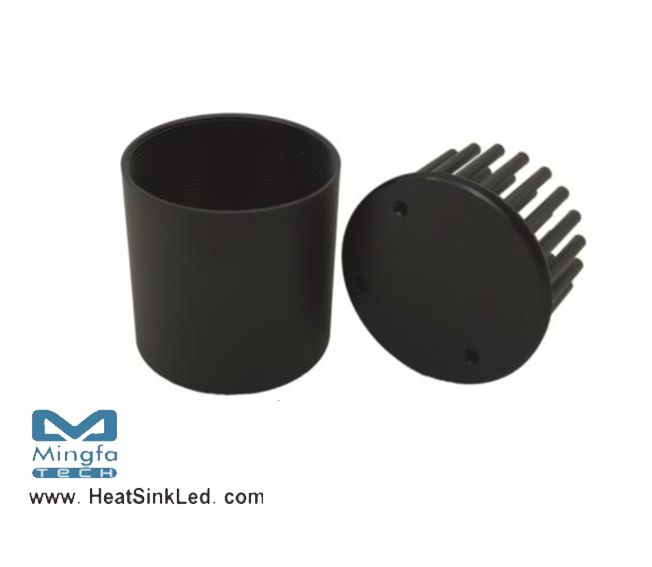

extruded led heat sink

All electronic devices can run faster as expected if it was not for heat that the machines need to dissipate. If there were no process of heat dissipation, then devices would have become defective, overheated and a failure of course. So, to produce reliable devices that have promising performance and long life is because of heat dissipation is has been introduced in the world of the mechanics.  Moreover, one of the best ways of removing heat is by attaching a heat sink.

Heat Sinks—A Note

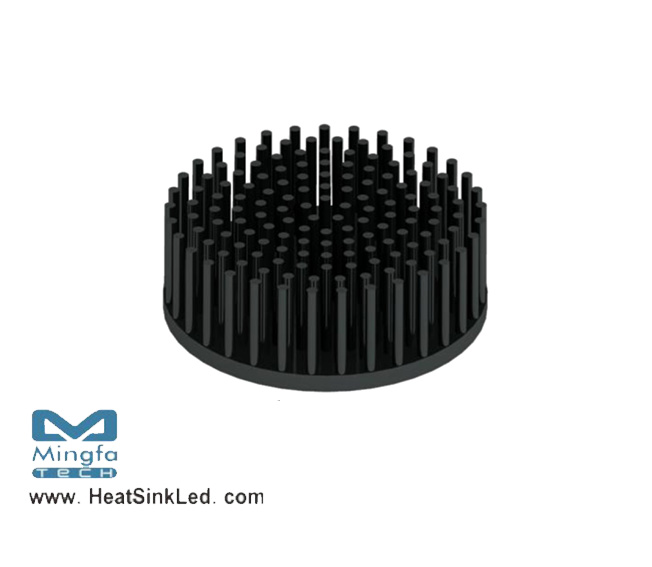

led engin heatsink

Heat sinks are the devices that empower heat dissipation from a hot component that is attached to the machines. These are usually installed on the surface of a heat generating component, to cool at ambient medium with the help of air blow.
In most states, heat is transferred through the interface between the hot component and the coolant air which is the least efficient within a system. Therefore, a heat sink placed on the hot component improves the way of transfer of heat by increasing the surface area with fins that come in direct contact with the air. This allows heat to be dissipated more and lowers the machine to operate less temperature and high performance. The primary purpose of a heat sink is to maintain the temperature of the device below the maximum allowed temperature specified by the manufacturers of the device.

Pin Fin Heat Sinks—More Efficient Cooling



Pin fin in heat sink technology represents the emerging class of high-performance heat sinks and lower temperature that can report to cooling challenges in many cutting edges electronic devices. If talking about LED lighting, then pin fin heat sinks works the best. Even though there are different styles of pin fin heat sinks, all the styles have a distinct physical characteristic: pin fin heat sinks make use of round, pin-shaped fins that work the best.
The round aerodynamic pin design reduces the resistance to surrounding airstreams which enter the pin array, and simultaneously increasing air turbulence and results in best performance. This fast airflow happens as in and out of the heat sink with the large surface area of the pin fin heat sink, results in efficient heat removal.

Other Heat Sink Types

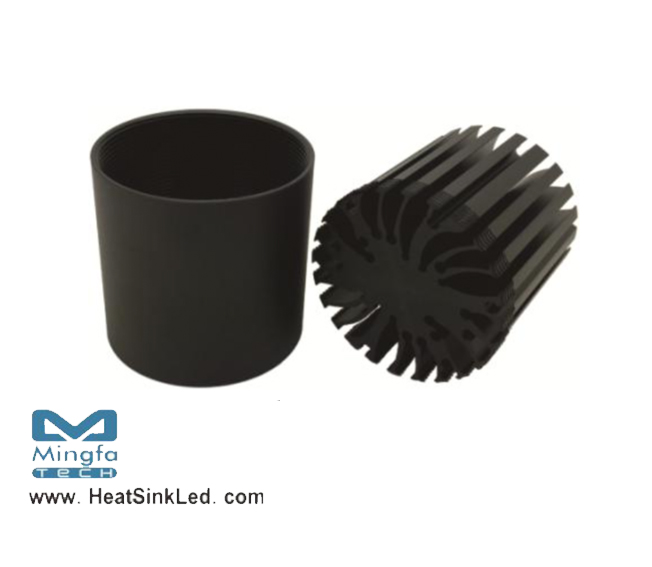

led heatsink with fan

There are numerous heat sinks available for a variety of applications which includes extruded, board or surface mount, fabricated fins and many others are all available. Also, these are available in a variety of sizes, performance levels and fixing methods. Moreover, there are numerous branded LED heat sinks like LED Star Heat Sinks, which are also known for delivering high performance in lighting.
