GooLED-SHA-8650 Pin Fin Heat Sink Φ86.5mm for Sharp

Availability:
Quantity:

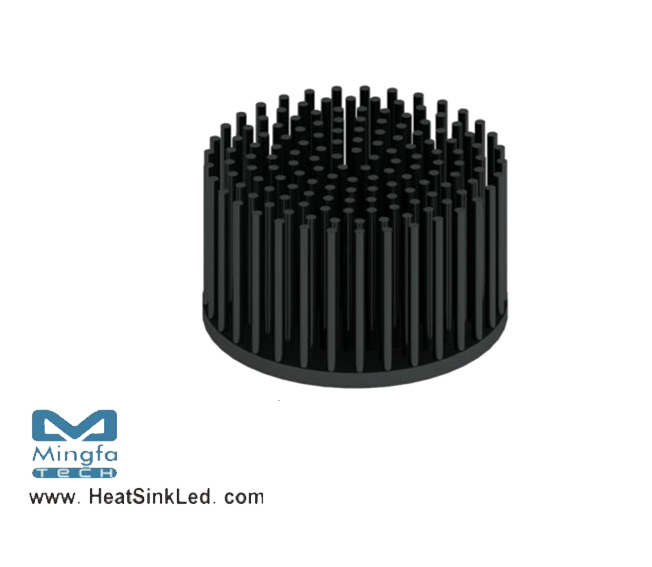

GooLED-SHA-8650 Pin Fin Heat Sink Φ86.5mm for Sharp


* The GooLED-SHA-8650Sharp Pin Fin LED Heat Sinks are specifically designed for luminaires using the Sharp LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1600 to 4100 lumen.
* Thermal resistance range Rth 1.4°C/W.
* Modular design with mounting holes foreseen for direct mounting of SHARP Mini Zenigata,

Tiger Zenigataand,Intermo and Mega Zenigata LED engines.
* Diameter 86.5mm - standard height 50mm Other heights on request. * Forged from highly conductive aluminum.


Downloap PDF

GooLED-8650 Pin Fin Heat Sink Φ86.5mm.pdf
