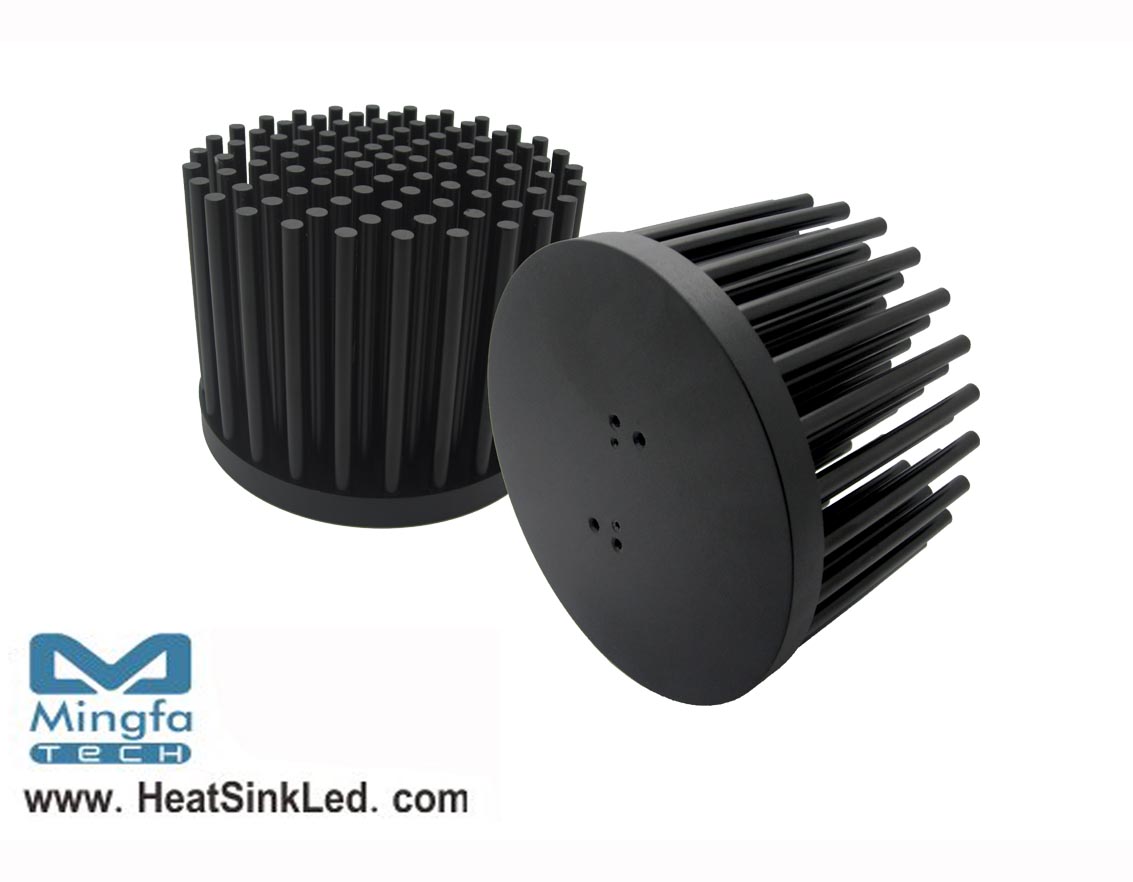

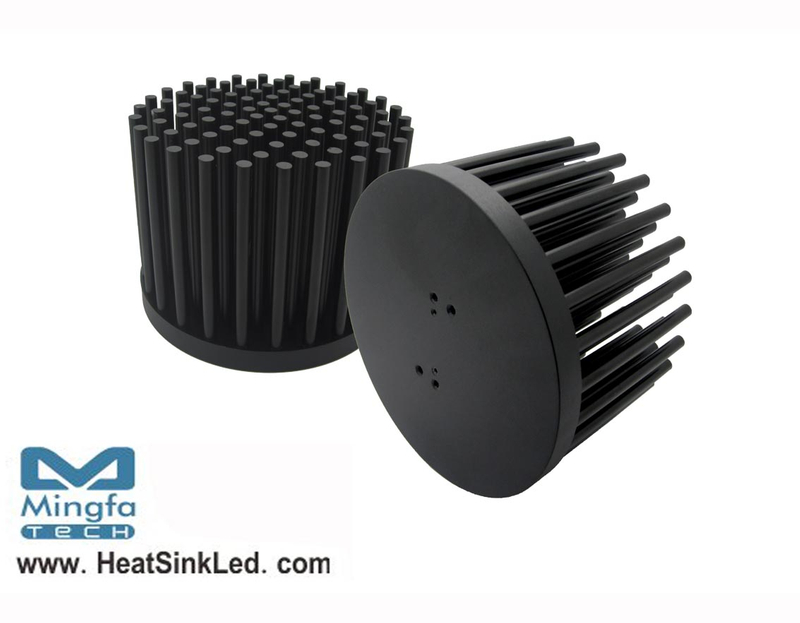

GooLED-SAM-11080 Pin Fin Heat Sink Φ110mm for Samsung

Availability:
Quantity:
GooLED-SAM-11080 Pin Fin Heat Sink Φ110mm for Samsung

* The GooLED-SAM-11080 Samsung Pin Fin LED Heat Sinks are specifically designed for luminaires using the Samsung LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 6500 lumen.
* Thermal resistance range Rth 1.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of Samung COB LED engines.
* Diameter 110mm - standard height 80mm  Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-SAM-11080 Pin Fin LED Heat Sink Φ110mm for Samsung.pdf
