GooLED-PHI-5830 Pin Fin Heat Sink Φ58mm for Philips

Quantity:

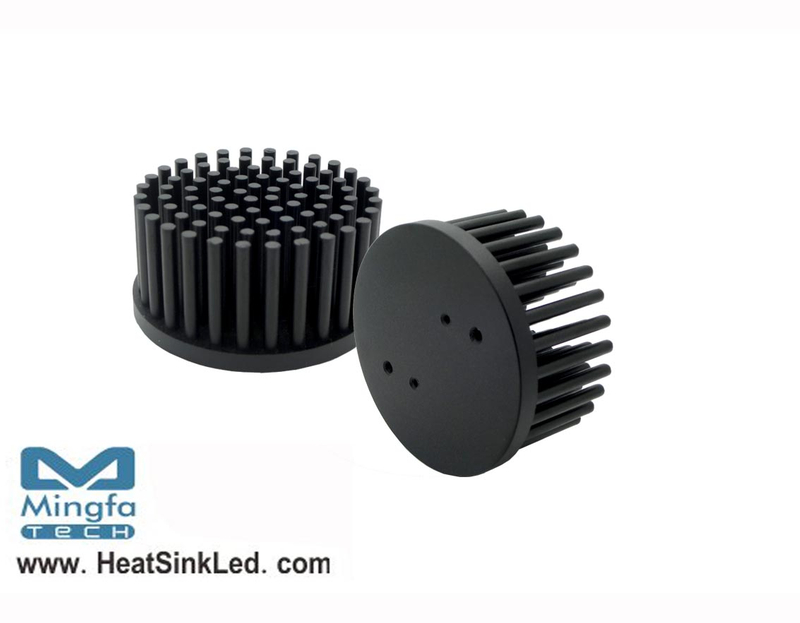

GooLED-PHI-5830 Pin Fin Heat Sink Φ58mm for Philips

* The GooLED-PHI-5830 Philips Pin Fin Heat Sinks are specifically
   designed forluminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 400 to 1500 lumen.
* Thermal resistance range Rth 3.3~4.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM,Luxeon K and
   LueonCOB engines.
* Diameter 58mm - standard height 30mm & 50mm Other heights on request.

* Forged from highly conductive aluminum.


Download PDF

GooLED-PHI-5830 Pin Fin Heat Sink Φ58mm for Philips.pdf
