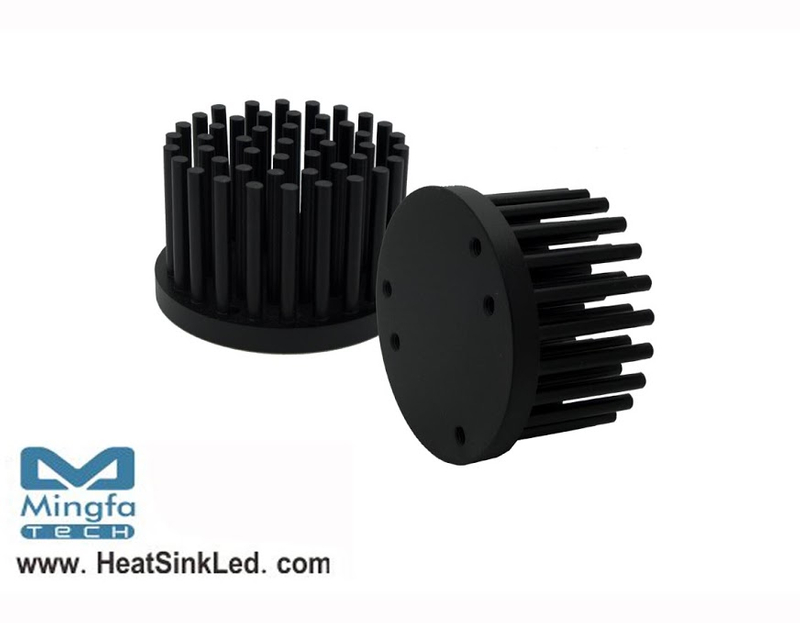

GooLED-PHI-4830 Pin Fin Heat Sink Φ48mm for Philips

Quantity:
GooLED-PHI-4830 Pin Fin Heat Sink Φ48mm for Philips

* The GooLED-PHI-4830 Philips Pin Fin Heat Sink are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1100 lumen.
* Thermal resistance range Rth 5.6°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 48mm - standard height 30mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-PHI-4830 Pin Fin Heat Sink Φ48mm for Philips.pdf
