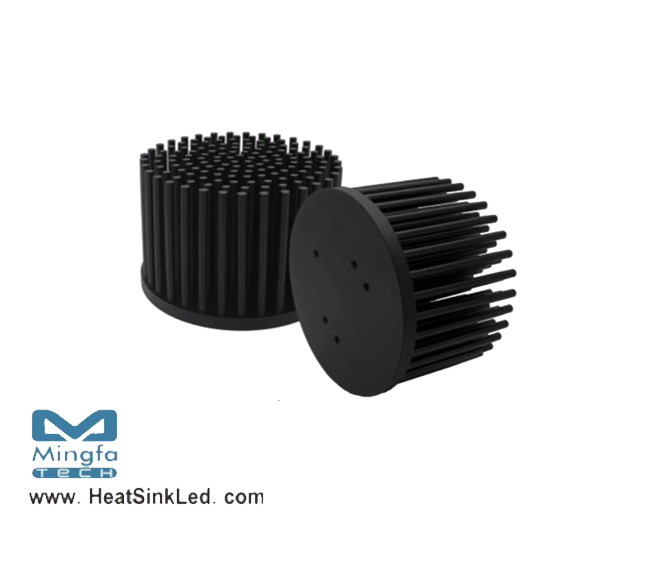

GooLED-NIC-7850 Pin Fin Heat Sink Φ78mm for Nichia
* The GooLED-NIC-7850 Nichia Pin Fin LED Heat Sinks are specifically designed for luminaires using the Nichia LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1100 to 2800 lumen.
* Thermal resistance range Rth 2.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of Nichia COB LED engines.
* Diameter 78mm - standard height 50mm Other heights on request.
* Forged from highly conductive aluminum.
Download PDF
