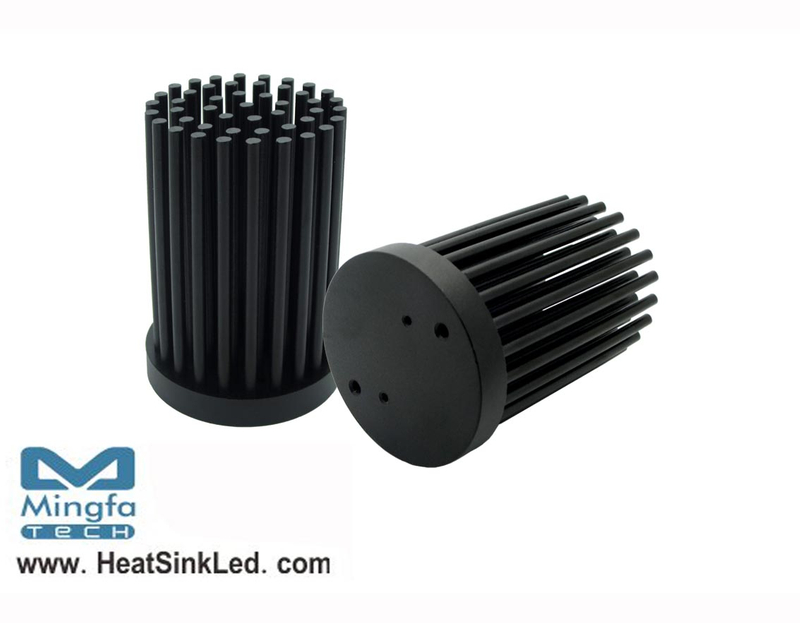

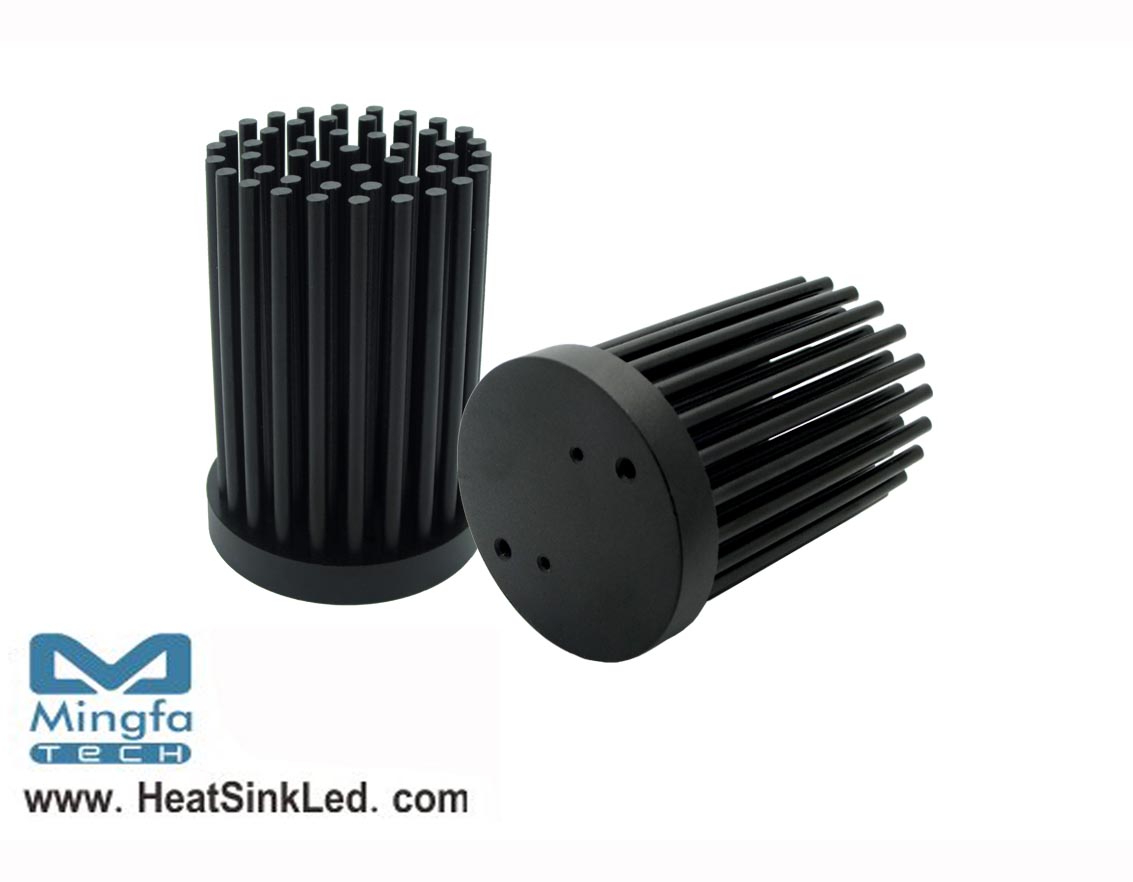

GooLED-LUN-4868 Pin Fin Heat Sink Φ48mm for Luminus Xnova

Availability:
Quantity:
GooLED-LUN-4868  Pin Fin Heat Sink Φ48mm for Luminus Xnova

* The GooLED-LUN-4868 Luminus Pin Fin LED Heat Sinks are specifically designed for luminaires using the Luminus LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1700 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Luminus COB LED engines.
* Diameter 48mm - standard height 68mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-LUN-4868 Pin Fin LED Heat Sink Φ48mm for Luminus.pdf
