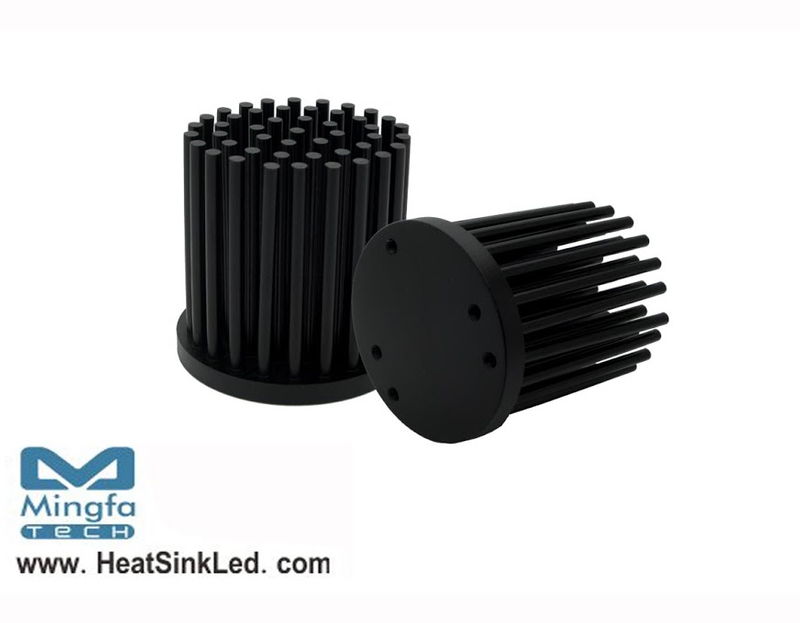

GooLED-LUME-4850 Lumens Modular Passive Star LED Heat Sink Φ48mm

Quantity:

GooLED-LUME-4850 Lumens Modular Passive Star LED Heat Sink Φ48mm

* The GooLED-LUME-4850 Lumens Pin Fin Heat Sinks are specifically designed for luminaires using the Lumens LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to 1500 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Lumens ERC1507 and ERC1512 LED engines.
* Diameter 48mm - standard height 50mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-LUME-4850 Pin Fin Heat Sink Φ48mm for Lumens.pdf
