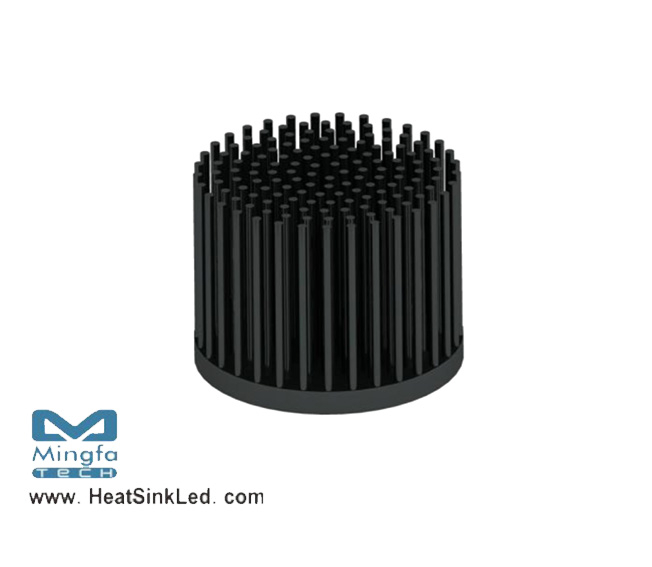

GooLED-LUM-8665 Pin Fin Heat Sink Φ86.5mm for LUMILEDS
* The GooLED-LUM-8665 LUMILEDS Pin Fin Heat Sink are specifically designed for luminaires using the LUMILEDS LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2000 to 4800 lumen.
* Thermal resistance range Rth 1.3°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K
and LueonCOB engines.
* Diameter 86.5mm - standard height 65mm Other heights on request. * Forged from highly conductive aluminum.
Download PDF
