GooLED-LUM-8650 Pin Fin Heat Sink Φ86.5mm for LUMILEDS

Availability:
Quantity:

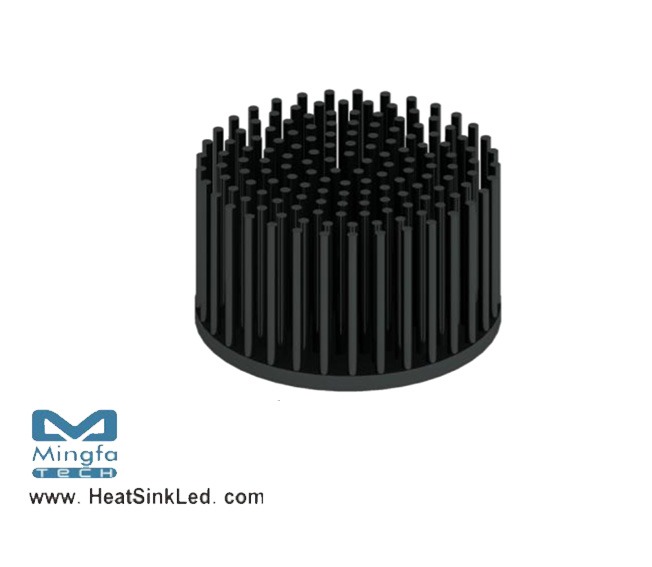

GooLED-LUM-8650 Pin Fin Heat Sink Φ86.5mm for LUMILEDS


* The GooLED-LUM-8650 LUMILEDS Pin Fin Heat Sink are specifically designed for luminaires using the LUMILEDS LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1600 to 4100 lumen.
* Thermal resistance range Rth 1.4°C/W.
* Modular design with mounting holes foreseen for direct mounting of LUMILEDS Luxeon K

and LueonCOB engines.
* Diameter 86.5mm - standard height 50mm Other heights on request. * Forged from highly conductive aluminum.


Download PDF

GooLED-LUM-8650 Pin Fin Heat Sink Φ86.5mm for LumiLEDs.pdf
