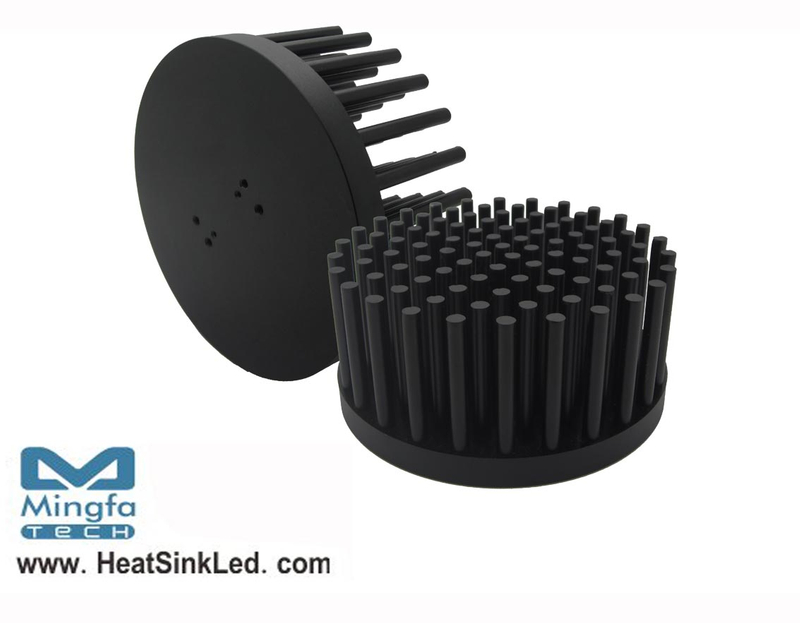

GooLED-LG-11050 Pin Fin Heat Sink Φ110mm for LG Innotek
* The GooLED-LG-11050 Innotek Modular Pin Fin Heat Sink are specifically designed for
luminaires using the LG Innotek LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1500 to 5000 lumen.
* Thermal resistance range Rth 1.3°C/W.
* Modular design with mounting holes foreseen for direct mounting of LG Innotek COB 24W/40W LED engines.
* Diameter 110mm - standard height 50mm & 80mm Other heights on request.
* Forged from highly conductive aluminum.
GooLED-LG-11050 Pin Fin Heat Sink Φ110mm for LG Innotek.pdf
