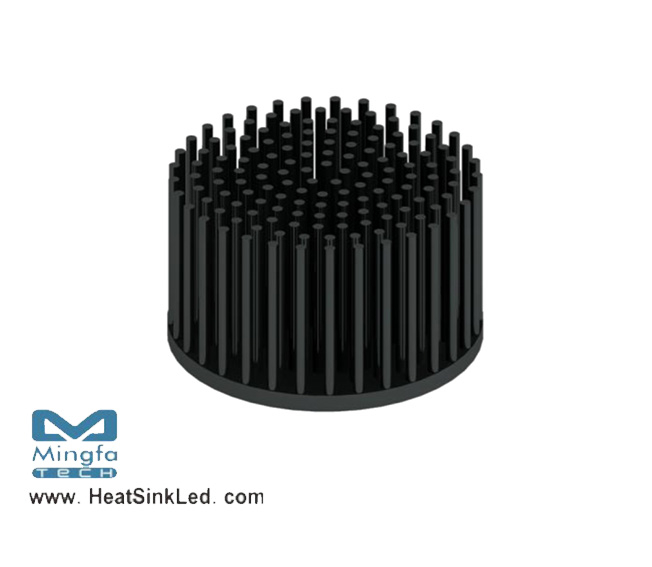

GooLED-EDI-8650 Pin Fin Heat Sink Φ86.5mm for Edison


* The GooLED-EDI-8650 Edison Pin Fin LED Heat Sinks are specifically designed for luminaires using the Edison LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1600 to 4100 lumen.
* Thermal resistance range Rth 1.4°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and

EdiLex II COB LED engines.
* Diameter 86.5mm - standard height 50mm Other heights on request. * Forged from highly conductive aluminum.
