GooLED-EDI-8630 Pin Fin Heat Sink Φ86.5mm for Edison

Quantity:

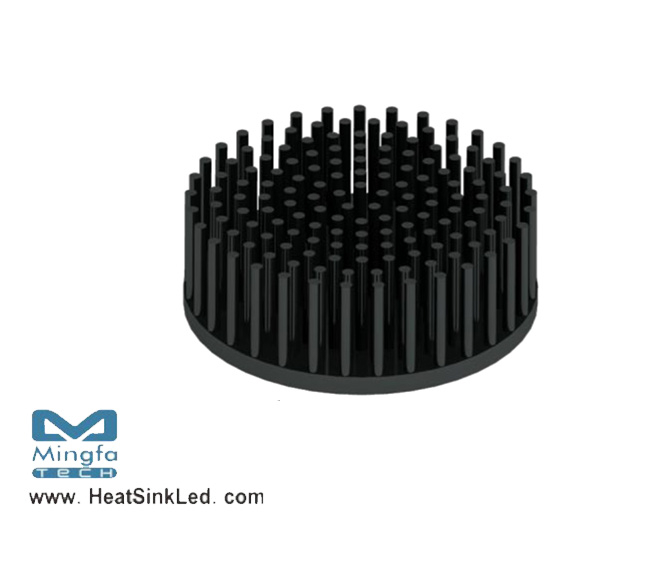

GooLED-EDI-8630 Pin Fin Heat Sink Φ86.5mm for Edison


* The GooLED-EDI-8630Edison Pin Fin LED Heat Sinks are specifically designed for luminaires using the Edison LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 850 to 2800 lumen.
* Thermal resistance range Rth 2.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and
EdiLex II COB LED engines.

* Diameter 86.5mm - standard height 30mm Other heights on request.

* Forged from highly conductive aluminum.


Download PDF

GooLED-EDI-8630 Pin Fin LED Heat Sink Φ86.5mm for Edison.pdf
