GooLED-EDI-4850 Pin Fin Heat Sink Φ48mm for Edison

Quantity:

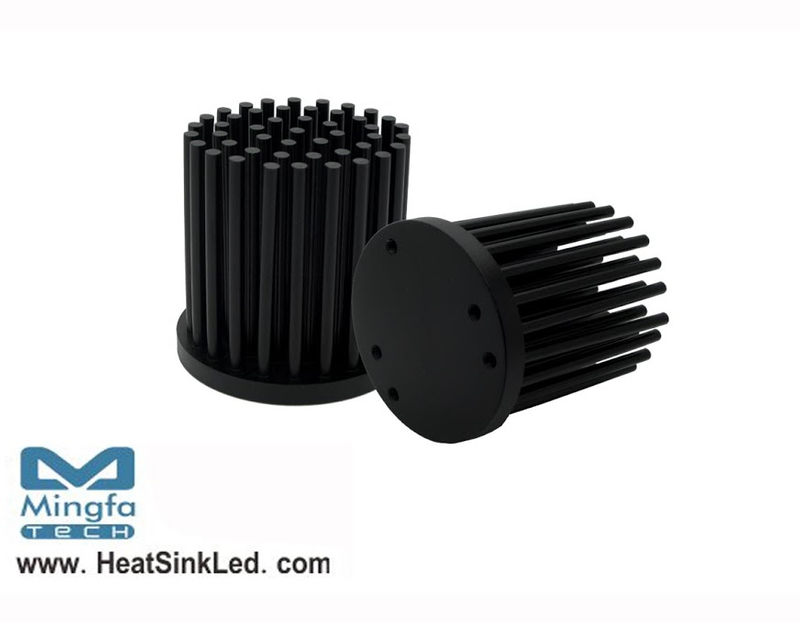

GooLED-EDI-4850 Pin Fin Heat Sink Φ48mm for Edison

* The GooLED-EDI-4850 Edison Pin Fin LED Heat Sinks are specifically designed for luminaires using the Edison LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 350 to 1200 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and EdiLex II COB LED engines.
* Diameter 48mm - standard height 50mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-EDI-4850 Pin Fin LED Heat Sink Φ48mm for Edison.pdf
