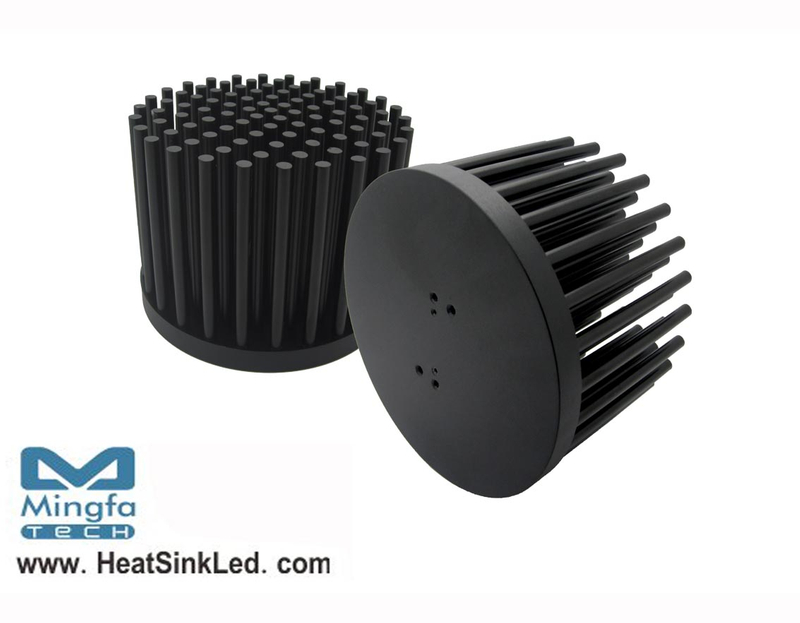

GooLED-EDI-11080 Pin Fin Heat Sink Φ110mm for Edison

Quantity:
GooLED-EDI-11080 Pin Fin Heat Sink Φ110mm for Edison

* The GooLED-EDI-11080 Edison Pin Fin LED Heat Sinks are specifically designed for luminaires using the Edison LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1600 to 5200 lumen.
* Thermal resistance range Rth 0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of Edison EdiLex SLM and EdiLex II COB LED engines.
* Diameter 110mm - standard height 80mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-EDI-11080 Pin Fin LED Heat Sink Φ110mm for Edison.pdf
