GooLED-CRE-7830 Pin Fin Heat Sink Φ78mm for Cree

Quantity:

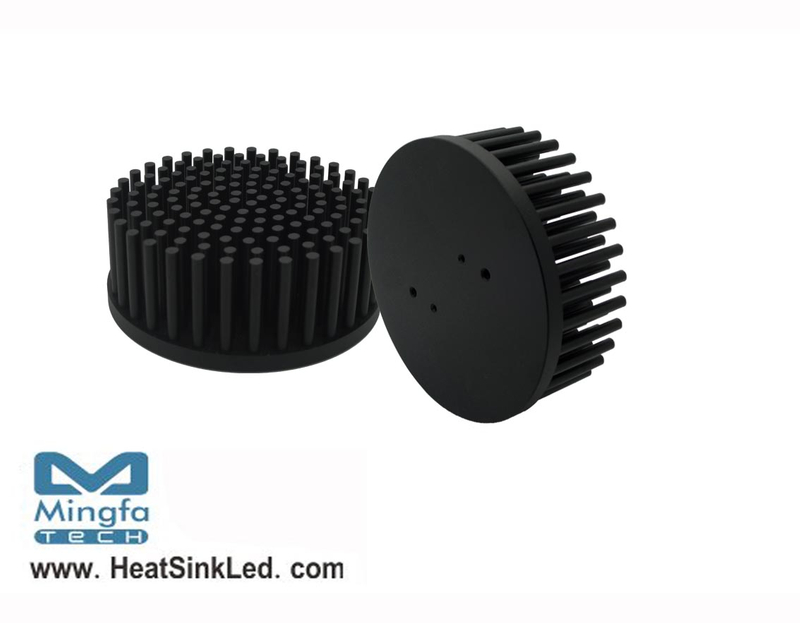

GooLED-CRE-7830  Pin Fin Heat Sink Φ78mm for Cree

* The GooLED-CRE-7830 Cree Pin Fin LED Heat Sinks are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 2000 lumen.
* Thermal resistance range Rth 2.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp CXA13xx,CXA15xx,CXA18xx and CXA25xx LED engines.
* Diameter 78mm - standard height 30mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-CRE-7830 Pin Fin Heat Sink Φ78mm for Cree.pdf
