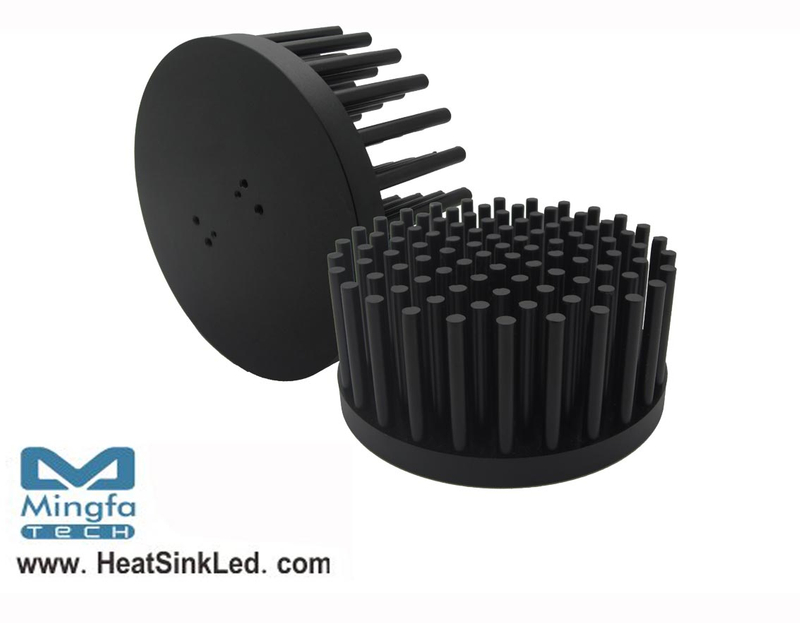

GooLED-CRE-11050 Pin Fin Heat Sink Φ110mm for Cree


GooLED-CRE-11050  Pin Fin Heat Sink Φ110mm for Cree

* The GooLED-CRE-11050 Cree Pin Fin LED Heat Sinks are specifically designed for luminaires using the Cree LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1400 to 4500 lumen.
* Thermal resistance range Rth 1.3°C/W.
* Modular design with mounting holes foreseen for direct mounting of Cree Lxamp CXA18xx,CXA25xx and CXA30xx LED engines.
* Diameter 110mm - standard height 50mm Other heights on request.

* Forged from highly conductive aluminum.

Download PDF

GooLED-CRE-11050 Pin Fin Heat Sink Φ110mm for Cree.pdf
