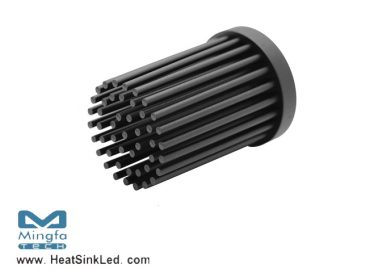

GooLED-CIT-4568 Pin Fin Heat Sink Φ45mm for Citizen


* The xLED-CIT-4568 CITIZEN Pin Fin LED Heat Sinks are specifically designed for luminaires using the CITIZEN LED engines.

* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 600 to 1400 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of CITIZEN CLL020~022,

CLU024/026/028 and CLL030~032,CLU034/036/038 LED engines. * Diameter 45mm - standard height 68mm Other heights on request. * Forged from highly conductive aluminum.
