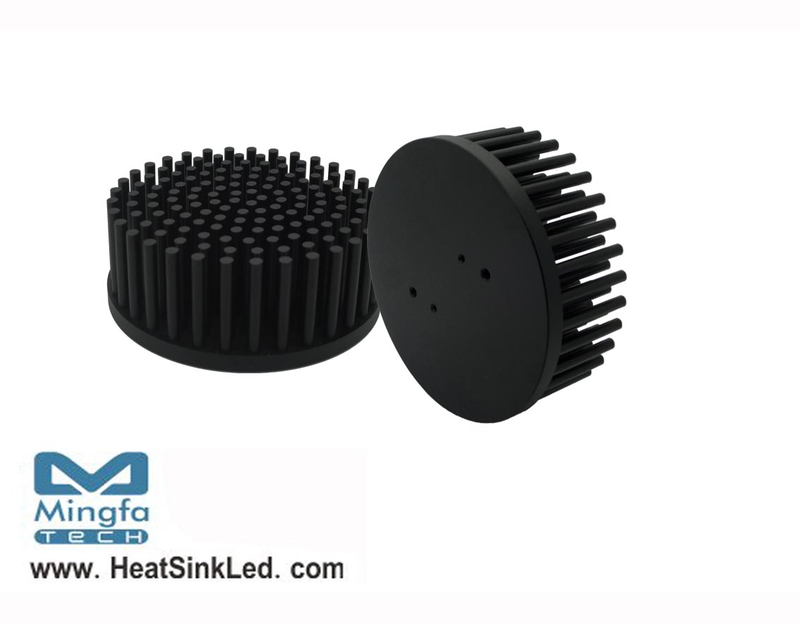

GooLED-BRI-7830 Pin Fin Heat Sink Φ78mm for Bridgelux

* The GooLED-BRI-7830 Bridgelux Pin Fin LED Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 700 to 2200 lumen.
* Thermal resistance range Rth 2.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Array V10,Vero 10~Vero 29,and ES Rectangle Array Series LED engines.
* Diameter 78mm - standard height 30mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-BRI-7830 Pin Fin Heat Sink Φ78mm for Bridgelux.pdf
