GooLED-BRI-6850 Pin Fin Heat Sink Φ68mm for Bridgelux

Availability:
Quantity:

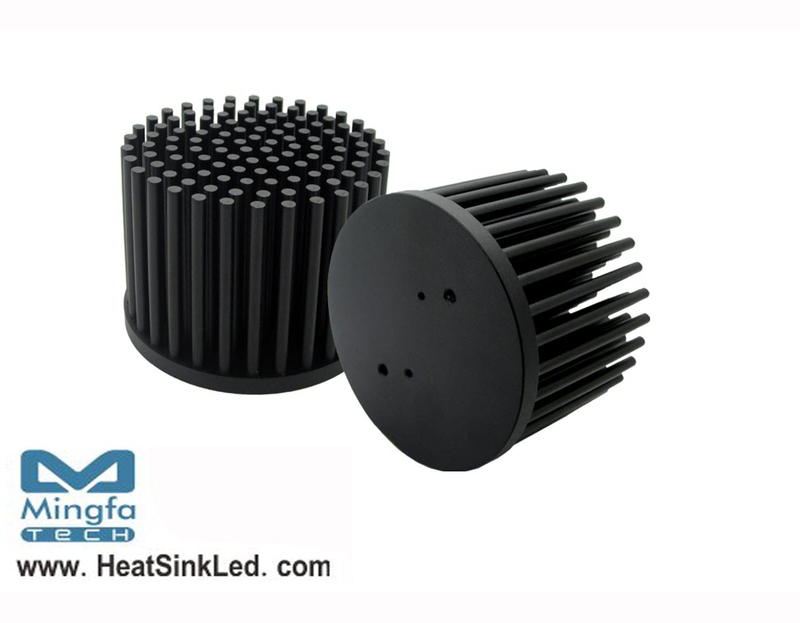

GooLED-BRI-6850 Pin Fin Heat Sink Φ68mm for Bridgelux

* The GooLED-BRI-6850 Bridgelux Pin Fin LED Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 2000 lumen.
* Thermal resistance range Rth 2.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux ES Star,Array V6,V8,V10,Vero 13,Vero 18 and ES Rectangle Array Series LED engines.
* Diameter 68mm - standard height 50mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-BRI-6850 Pin Fin Heat Sink Φ68mm for Bridgelux.pdf
