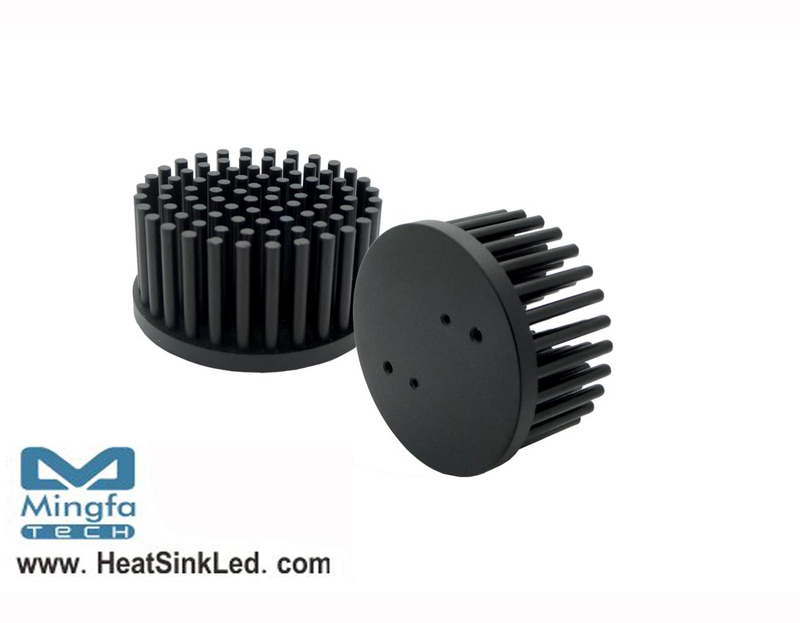

* The GooLED-BRI-4868 Bridgelux Pin Fin LED Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 500 to1700 lumen.
* Thermal resistance range Rth 3.7°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux ES Star,Array V6,V8,V10 and Vero 10 Array LED engines.
* Diameter 48mm - standard height 68mm Other heights on request.
* Forged from highly conductive aluminum.
