GooLED-BRI-11080 Pin Fin Heat Sink Φ110mm for Bridgelux

Availability:
Quantity:

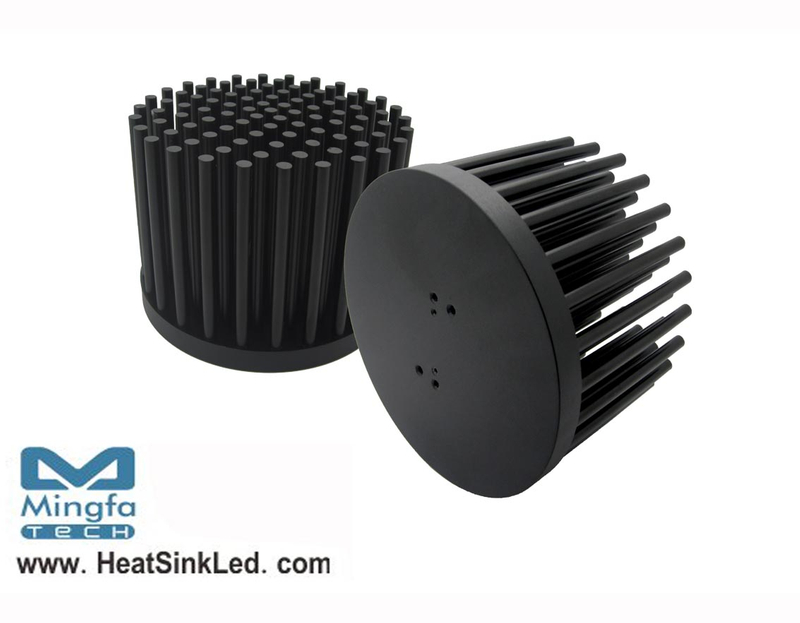

GooLED-BRI-11080 Pin Fin Heat Sink Φ110mm for Bridgelux

* The GooLED-BRI-11080 Bridgelux Pin Fin LED Heat Sinks are specifically designed for luminaires using the Bridgelux LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1800 to 6000 lumen.
* Thermal resistance range Rth 1.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of Bridelux Array V15,Vero 13~Vero 29,ES Rectangle Array Series and RS Array Series LED engines.
* Diameter 110mm - standard height 80mm Other heights on request.
* Forged from highly conductive aluminum.


Download PDF

GooLED-BRI-11080 Pin Fin Heat Sink Φ110mm for Bridgelux.pdf
