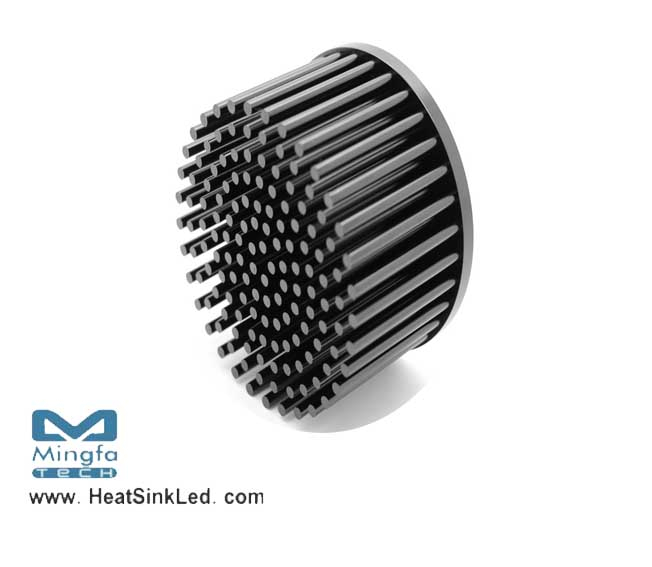

GooLED-8650 Pin Fin LED Heat Sink Φ86.5mm

Quantity:

GooLED-8650 Pin Fin LED Heat Sink Φ86.5mm


* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.

* For spotlight and downlight designs from 1,600 to 4,400 lumen.

* Thermal resistance range Rth 1.85°C/W.

* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:

* Diameter 86.5mm - Standard height 50.0mm , Other heights on request.

* Forged from highly conductive aluminum.

* 2 standard colors - clear anodised - black anodised.

* Zhaga Book 3 Spot Light modules: Bridgelux ,Cree ,Citizen ,Edison ,GE lighting,LG Innotek ,Lumileds ,Lumens ,Luminus ,Nichia ,Osram ,Philips ,Prolight Opto,Samsung ,Seoul ,Tridonic ,Vossloh-Schwabe ,Xicato.


Download PDF

GooLED-8650 Pin Fin Heat Sink Φ86.5mm.pdf
