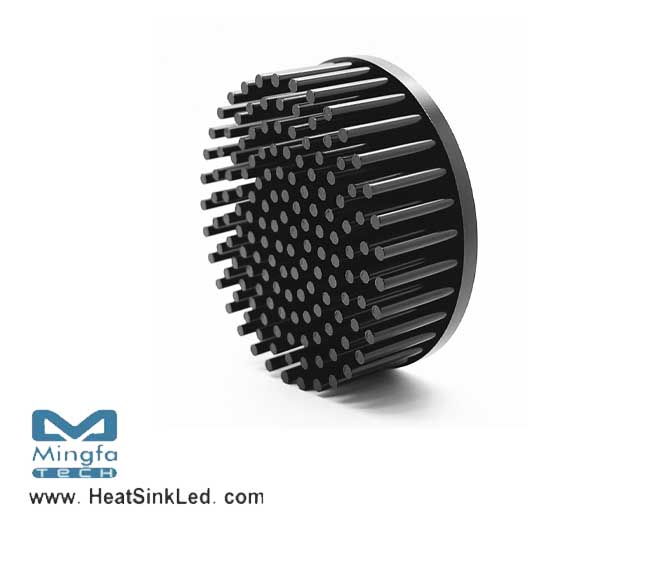

GooLED-8630 Pin Fin LED Heat Sink Φ86.5mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1,200 to 3,200 lumen.
* Thermal resistance range Rth 2.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 86.5mm - Standard height 30.0mm , Other heights on request.
* Forged from highly conductive aluminum.
* 2 standard colors - clear anodised - black anodised.
* Zhaga Book 3 Spot Light modules: Bridgelux ,Cree ,Citizen ,Edison ,GE lighting,LG Innotek ,Lumileds ,Lumens ,Luminus ,Nichia ,Osram ,Philips ,Prolight Opto,Samsung ,Seoul ,Tridonic ,Vossloh-Schwabe ,Xicato.
Download PDF
GooLED-8630 Pin Fin Heat Sink Φ86.5mm.pdf
