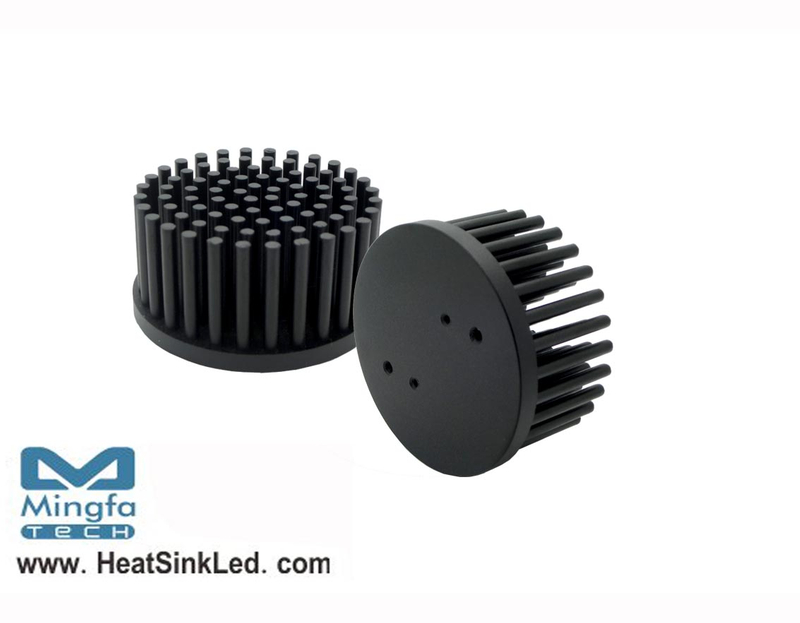

GooLED-5830 Modular Passive LED Pin Fin Heat Sink Φ58mm


GooLED-5830  Pin Fin LED Heat Sink Φ58mm

* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* Thermal resistance range Rth 4.5°C/W.
* Modular design with mounting holes foreseen for direct  mounting of a wide range of LED modules and COB's:
* Diameter 58mm - Standard height 30mm , Other heights on request.
* Forged from highly conductive aluminum.
2 standard colors - clear anodized - black anodized
 Zhaga Book 3 Spot Light Modules Edison , Osram , Xicato , Bridelux , Citizen  ,Cree , Seoul ,
 Philips , Tridonic , Vossloh-Schwabe, LG ,Lustrous ,Prolight ,Luminus ,SHARP ,Samsung .

Download PDF

GooLED-5830 Pin Fin Heat Sink Φ58mm.pdf
