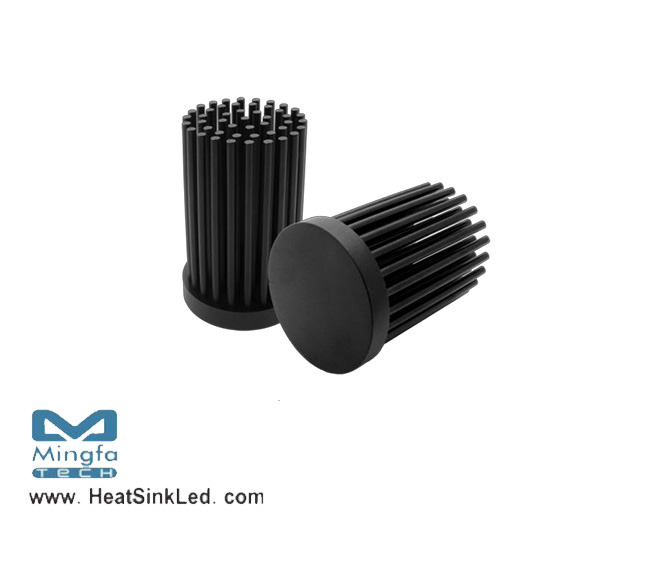

GooLED-4880 Pin Fin LED Heat Sink Φ48mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 1,800 lumen.
* Thermal resistance range Rth 4.0°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 48.0mm - Standard height 80.0mm , Other heights on request.
* Forged from highly conductive aluminum.
* 2 standard colors - clear anodised - black anodised.
* Zhaga Book 3 Spot Light modules: Bridgelux ,Cree ,Citizen ,Edison ,GE lighting,LG Innotek ,Lumileds ,Lumens ,Luminus ,Nichia ,Osram ,Philips ,Prolight Opto,Samsung ,Seoul ,Tridonic ,Vossloh-Schwabe ,Xicato.
Download PDF
