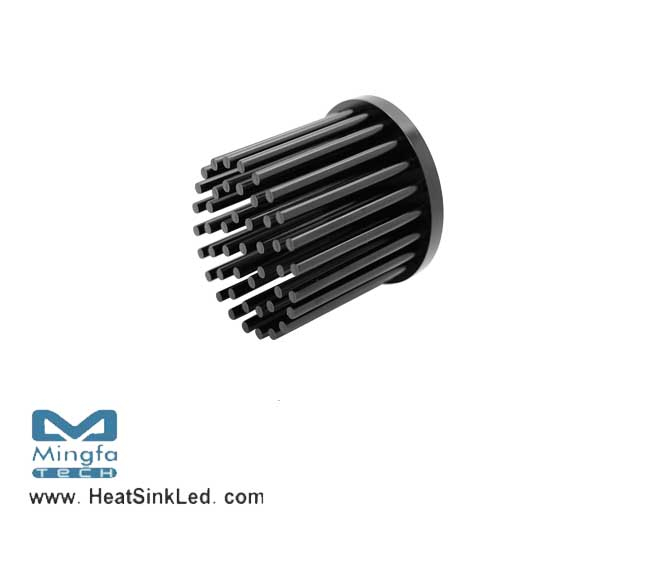

GooLED-3530 Pin Fin LED Heat Sink Φ35mm
* Mechanical compatibility with direct mounting of the LED modules to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 200 to 650 lumen.
* Thermal resistance range Rth 11.1°C/W.
* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:
* Diameter 35.0mm - Standard height 30.0mm , Other heights on request.
* Forged from highly conductive aluminum.
* 2 standard colors - clear anodised - black anodised
* Spot Light modules Edison ,Bridelux ,Citizen ,Cree ,Tridonic , Seoul , Lustrous , Luminus , LumiLEDs.
Download PDF
GooLED-3530 Pin Fin Heat Sink Φ35mm.pdf
