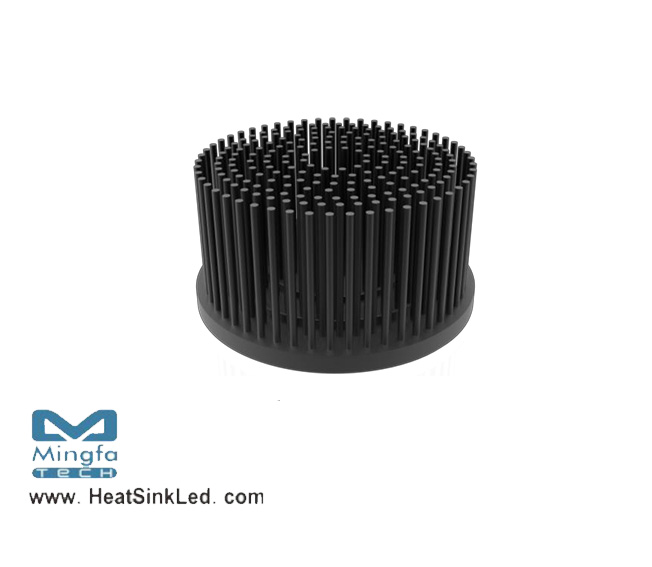

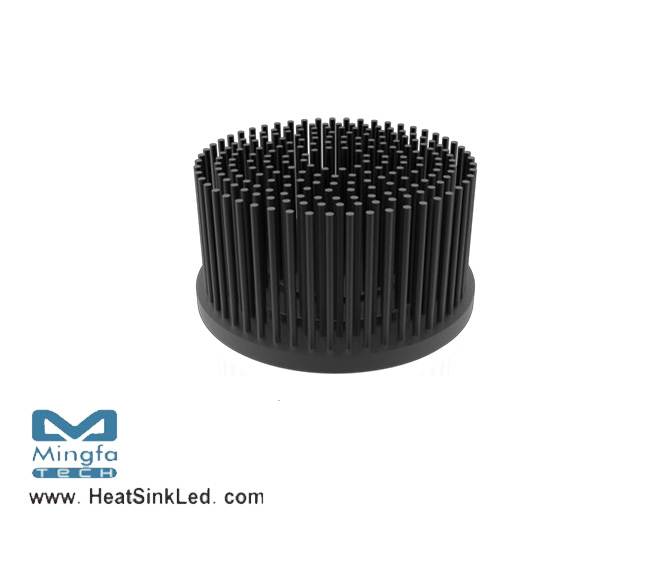

GooLED-16080 Pin Fin Heat Sink Φ160mm

Availability:
Quantity:

GooLED-16080 Pin Fin Heat Sink Φ160mm


* Mechanical compatibility with direct mounting of the LED modules to the LED cooler thermal performance matching the lumen packages.

* For spotlight and downlight designs from 4,000 to 9,500 lumen.

* Thermal resistance range Rth 0.76°C/W.

* Modular design with mounting holes foreseen for direct mounting of a wide range of LED modules and COB's:

* Diameter 160mm - Standard height 80.0mm , Other heights on request.

* Forged from highly conductive aluminum.

* With the SMD products (3030 , 2835 , 5050……) and modules: Bridgelux ,Cree ,Citizen ,Edison ,GE lighting, LG Innotek ,Lumileds ,Lumens ,Luminus ,Nichia ,Osram ,Philips ,Prolight Opto,Samsung ,Seoul ,Tridonic ,Vossloh-Schwabe ,Xicato.


Download PDF

GooLED-16080 Pin Fin Heat Sink Φ160mm.pdf
