EtraLED-VOS-8580 for Vossloh Schwabe Modular Passive LED Cooler Φ85mm

Availability:
Quantity:

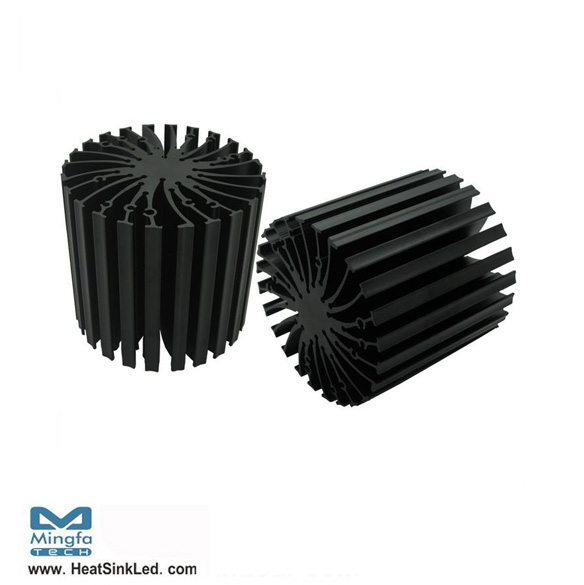

EtraLED-VOS-8580 for Vossloh Schwabe Modular Passive LED Cooler Φ85mm

* The EtraLED-VOS-8580 Vossloh-Schwabe Modular Passive tar LED Heat Sinks are specifically designed for luminaires using the Vossloh-Schwabe LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1500 to 4600 lumen.
* Thermal resistance range Rth 1.3°C/W.
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe LUGA Shop and LUGA C LED engines.
* Diameter 85mm - standard height 80mm,Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-VOS-8580 Vossloh-Schwabe Modular Passive tar LED Heat Sink Φ85mm.pdf
