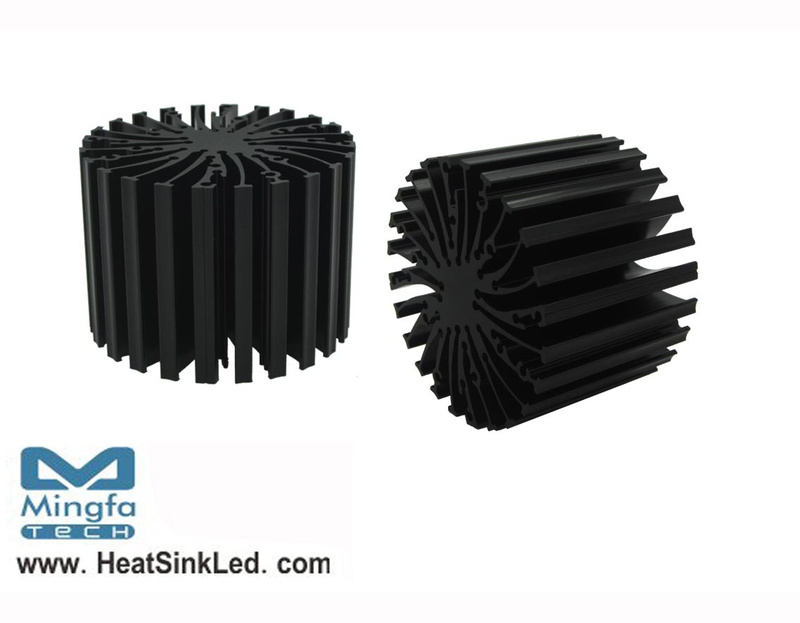

EtraLED-VOS-7050 for Vossloh Schwabe Modular Passive LED Cooler Φ70mm

Quantity:
EtraLED-VOS-7050 for Vossloh Schwabe Modular Passive LED Cooler Φ70mm

* The EtraLED-VOS-7050 Vossloh-Schwabe Modular Passive LED Coolers are specifically
  designed for luminaires using the Vossloh-Schwabe LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 2800 lumen.
* Thermal resistance range Rth  2.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe
  LUGA Shop LED engines.
* Diameter 70mm - standard height 50mm,Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-VOS-7050 Vossloh-Schwabe Modular Passive tar LED Heat Sink Φ70mm.pdf
