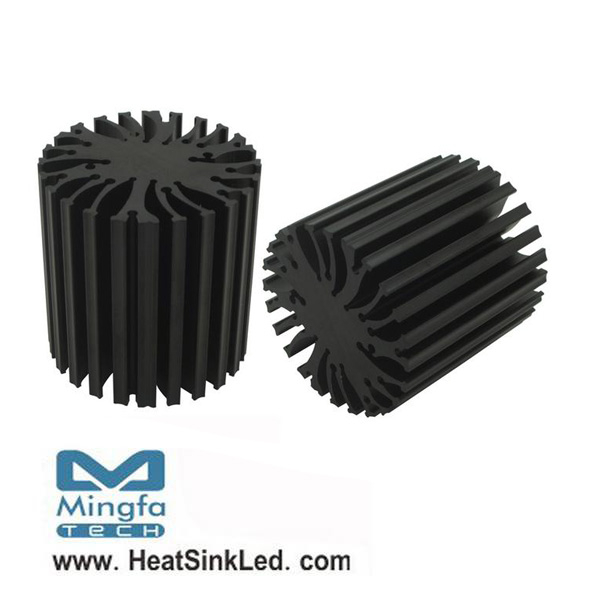

EtraLED-VOS-4850 for Vossloh Schwabe Modular Passive LED Cooler Φ48mm

EtraLED-VOS-4850 for Vossloh Schwabe Modular Passive LED Cooler Φ48mm
* The EtraLED-VOS-4850 Vossloh-Schwabe Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Vossloh-Schwabe LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 600 to 1500 lumen.
* Thermal resistance range Rth 4.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe LUGA Shop and LUGA C LED engines.
* Diameter 48mm - standard height 50mm,Other heights on request.

* Extruded from highly conductive aluminum.

Download PDF

EtraLED-VOS-4850 Vossloh-Schwabe Modular Passive tar LED Heat Sink Φ48mm.pdf
