EtraLED-VOS-13050 for Vossloh Schwabe Modular Passive LED Cooler Φ130mm

Quantity:

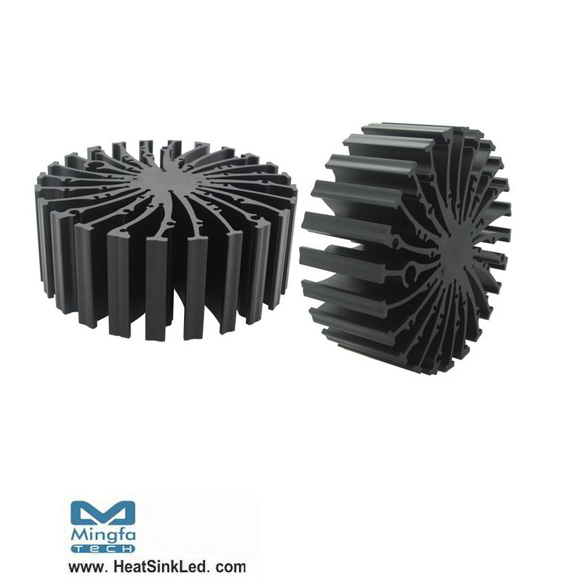

EtraLED-VOS-13050 for Vossloh Schwabe Modular Passive LED Cooler Φ130mm



* The EtraLED-VOS-13050 Vossloh-Schwabe Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Vossloh-Schwabe LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2500 to 6800 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of Vossloh-Schwabe LUGA C LED engines.
* Diameter 130mm - standard height 50mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-VOS-13050 Vossloh-Schwabe Modular Passive tar LED Heat Sink Φ130mm.pdf
