EtraLED-TRI-9620 for Tridonic Modular Passive LED Cooler Φ96mm

Availability:
Quantity:

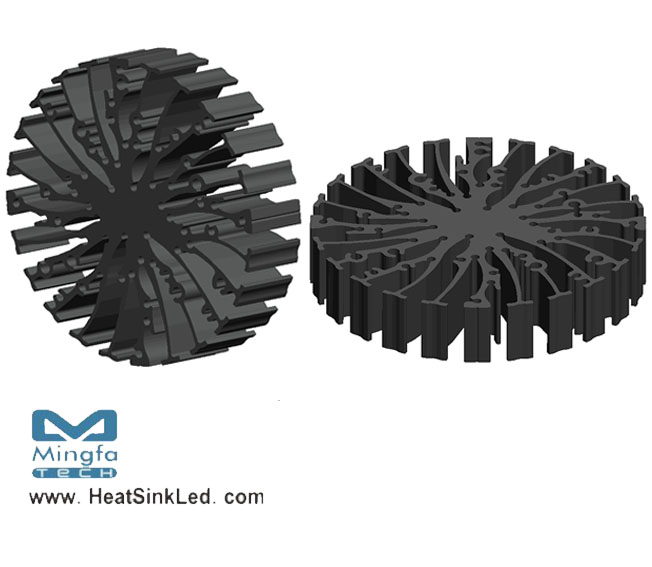

EtraLED-TRI-9620 for Tridonic Modular Passive LED Cooler Φ96mm

* The EtraLED-TRI-9620 Tridonic Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Tridonic LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1000 to 3400 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Tridonic TALEXXmodule SLE modules.
* Diameter 96mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-TRI-9620 Tridonic Modular Passive Star LED Heat Sink Φ96mm.pdf
