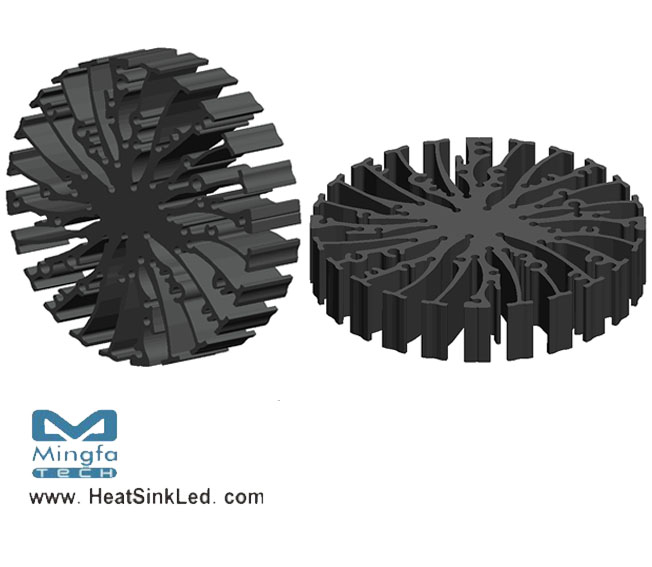

EtraLED-SHA-9620 for Sharp Modular Passive LED Cooler Φ96mm

Quantity:
EtraLED-SHA-9620 for Sharp Modular Passive LED Cooler Φ96mm

* The EtraLED-SHA-9620  SHARP Modular Passive LED Coolers are specifically designed for luminaires using the SHARP LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1100 to 3400 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of SHARP Mini Zenigata,Tiger Zenigataand and Mega Zenigata LED engines.
* Diameter 96mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-SHA-9620 Sharp Modular Passive Star LED Heat Sink Φ96mm.pdf
