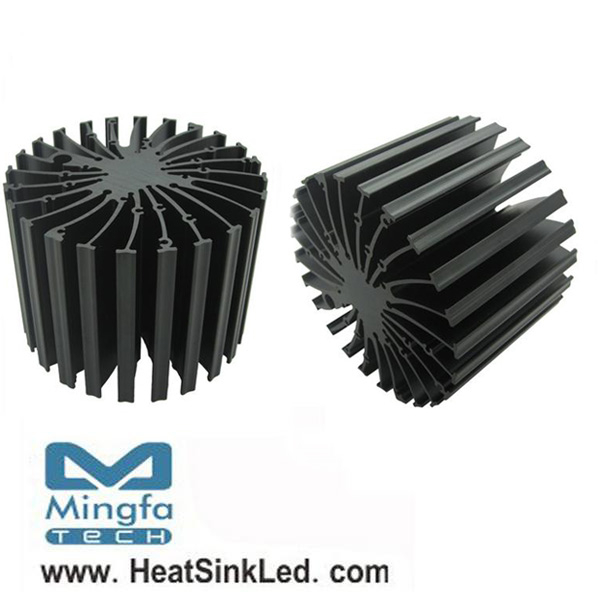

EtraLED-SHA-11080 for Sharp Modular Passive LED Cooler Φ110mm

Quantity:
EtraLED-SHA-11080 for Sharp Modular Passive LED Cooler Φ110mm

* The EtraLED-SHA-11080 Sharp Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Sharp LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 2800 to 6900 lumen.
* Thermal resistance range Rth 0.9°C/W.
* Modular design with mounting holes foreseen for direct mounting of SHARP Intermo and Mega Zenigata LED engines.
* Diameter 110mm - standard height 100mm  Other heights on request.

* Extruded from highly conductive aluminum.


Download PDF

EtraLED-SHA-11080 Sharp Modular Passive Star LED Heat Sink Φ110mm.pdf
