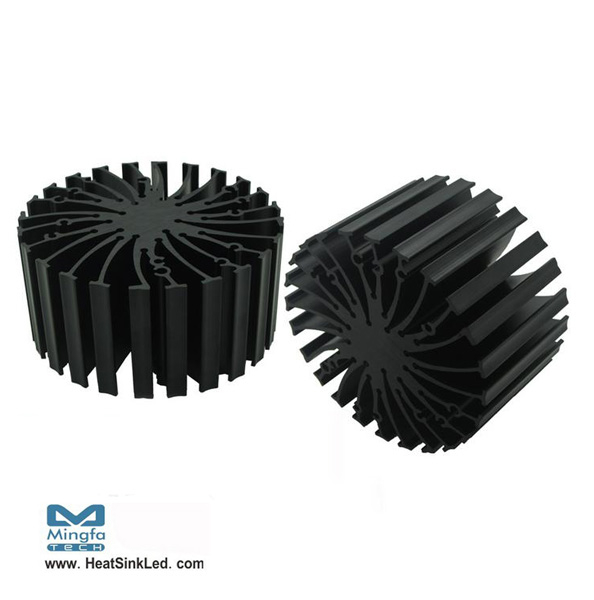

* The EtraLED-8550 Seoul Modular Passive LED Coolers are specifically designed for luminaires using the Seoul LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1600 to 4100 lumen.
* Thermal resistance range Rth 1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Seoul ZC LED engines,
* Diameter 85mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.
