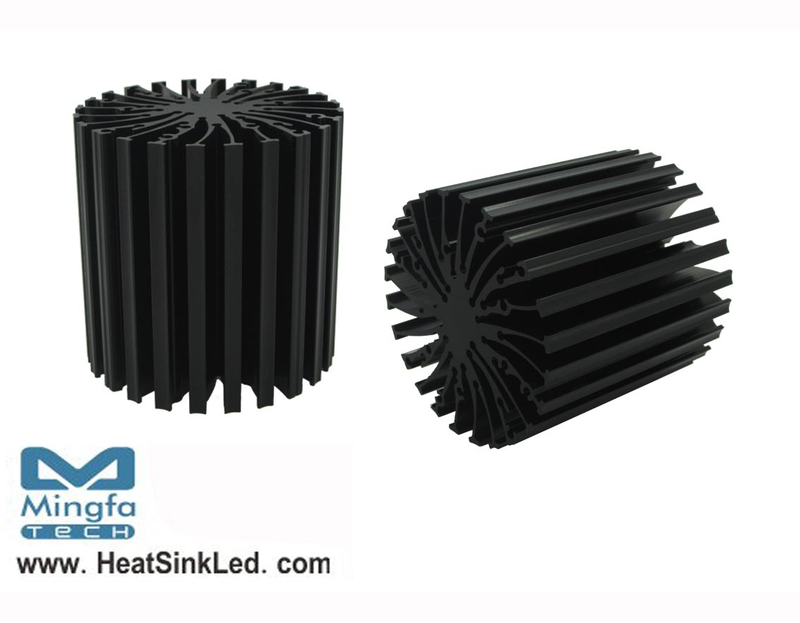

* The EtraLED-SEO-7080 Seoul Modular Passive LED Coolers are specifically designed for
luminaires using the Seoul LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1400 to 3400 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Seoul ZC4 Series,ZC6 Series,
ZC12 Series,ZC18 Series,ZC25 Series and ZC40 Series COB engines.
* Diameter 70mm - standard height 80mm Other heights on request.
* Extruded from highly conductive aluminum.
