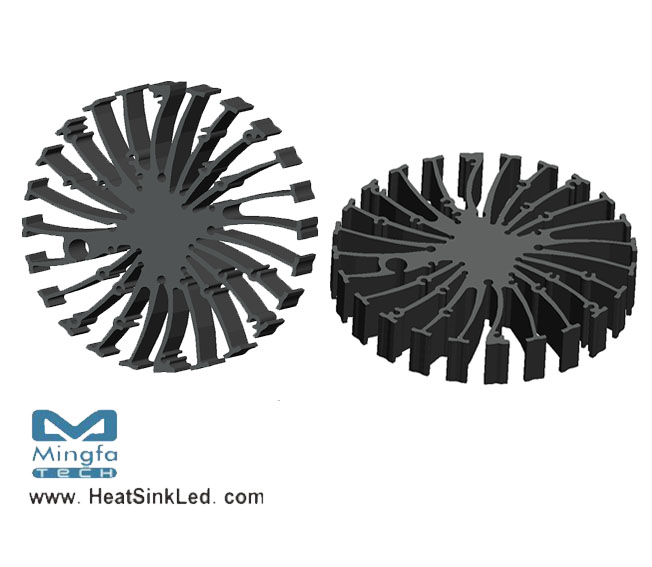

EtraLED-SEO-11020 for Seoul Modular Passive LED Cooler Φ110mm

Quantity:

EtraLED-SEO-11020 for Seoul Modular Passive LED Cooler Φ110mm

* The EtraLED-SEO 11020 Seoul Modular Passive LED Coolers are specifically designed for
   luminaires using the Seoul LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and
   thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1200 to 4500 lumen.
* Thermal resistance range Rth  1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Seoul ZC4 Series,ZC6 Series,
  ZC12 Series,ZC18 Series,ZC25 Series and ZC40 Series COB engines.
* Diameter 110mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Down PDF

EtraLED-SEO-11020 Seoul Modular Passive Star LED Heat Sink Φ110mm.pdf
