EtraLED-PRO-9680 for Prolight Modular Passive LED Cooler Φ96mm

Quantity:

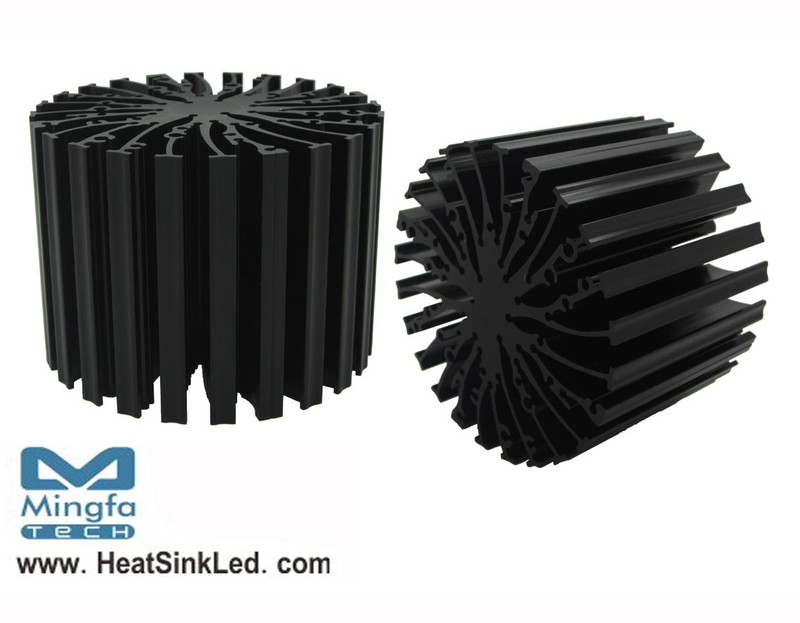

EtraLED-PRO-9680 for Prolight Modular Passive LED Cooler Φ96mm

* The EtraLED-PRO-9680  Prolight Modular Passive LED Coolers are specifically designed for luminaires using the Prolight LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1200 to 6400 lumen.
* Thermal resistance range Rth  0.92°C/W.
* Modular design with mounting holes foreseen for direct mounting of Prolight N SERIRS CI Series,CII SERIRS, CIII SERIRS BI SERIRS and BS SERIRS engines.
* Diameter 96mm - standard height 80mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-PRO-9680 Prolight Modular Passive Star LED Heat Sink Φ96mm.pdf
