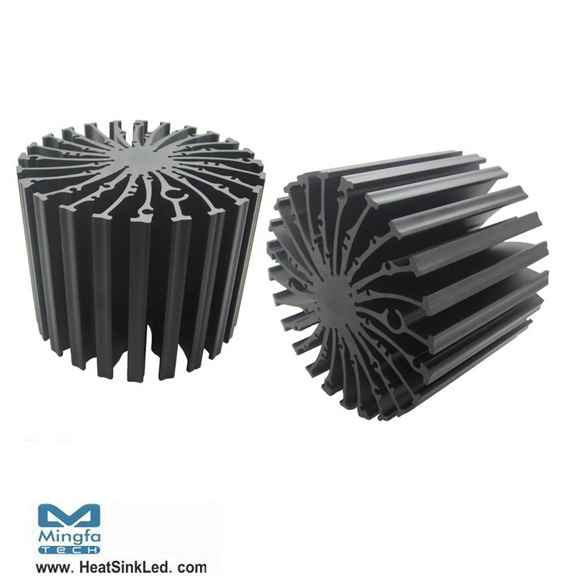

* The EtraLED-PRO-130100 Prolight Modular Passive Star LED Heat Sinks are specifically designed for luminaires using the Prolight LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3400 to 9000 lumen.
* Thermal resistance range Rth 0.65°C/W.
* Modular design with mounting holes foreseen for direct mounting of Prolight COB series LED engines.
* Diameter 130mm - standard height 100mm Other heights on request.
* Extruded from highly conductive aluminum.
EtraLED-PRO-130100 Prolight Modular Passive Star LED Heat Sink Φ130mm.pdf
