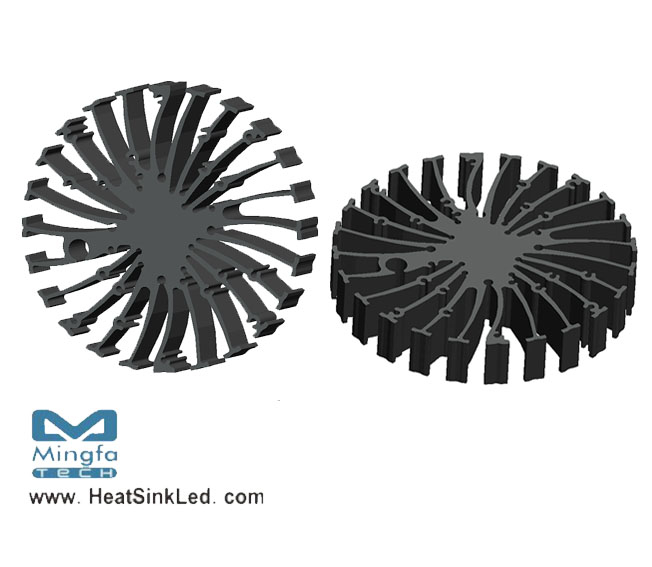

EtraLED-PRO-11020 for Prolight Modular Passive LED Cooler Φ110mm

Availability:
Quantity:
EtraLED-PRO-11020 for Prolight Modular Passive LED Cooler Φ110mm

* The EtraLED-PRO-11020  Prolight Modular Passive LED Coolers are specifically designed for luminaires using the Prolight LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 1200 to 4300 lumen.
* Thermal resistance range Rth  1.5°C/W.
* Modular design with mounting holes foreseen for direct mounting of Prolight CI Series,CII SERIRS,BI SERIRS,BS SERIRS and N SERIRS engines.
* Diameter 110mm - standard height 20mm  Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-PRO-11020 Prolight Modular Passive Star LED Heat Sink Φ110mm.pdf
