EtraLED-PHI-9650 for Philips Modular Passive LED Cooler Φ96mm

Quantity:

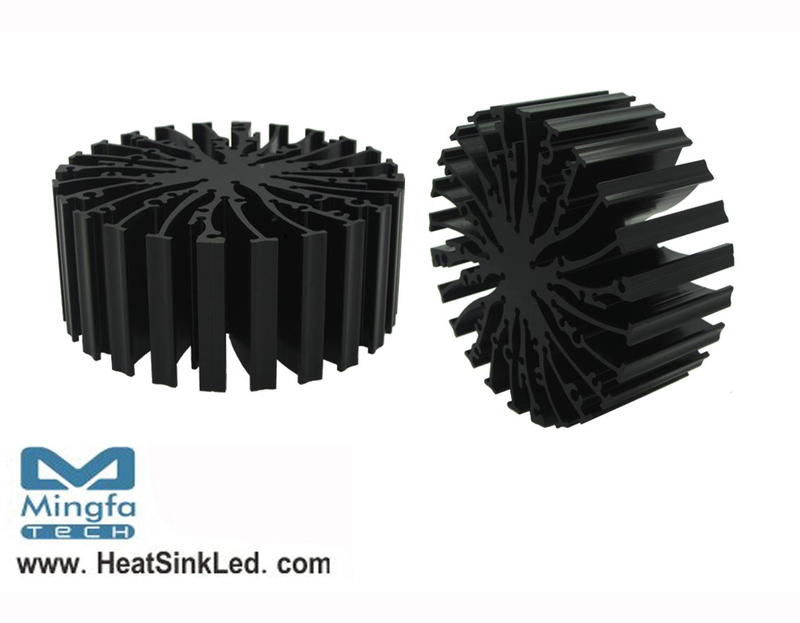

EtraLED-PHI-9650 for Philips Modular Passive LED Cooler Φ96mm

* The EtraLED-PHI-9650 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 3000 to 4400 lumen.
* Thermal resistance range Rth  1.2°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 96mm - standard height 50mm Other heights on request.
* Extruded from highly conductive aluminum.


Download PDF

EtraLED-PHI-9650 for Philips Modular Passive Star LED Heat Sink Φ96mm.pdf
