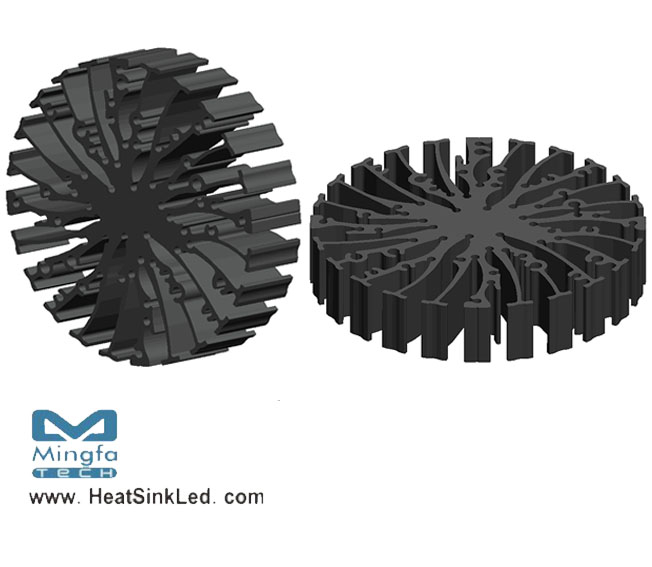

* The EtraLED-PHI-9620 Philips Modular Passive LED Coolers are specifically designed for luminaires using the Philips LED engines.
* Mechanical compatibility with direct mounting of the LED engines to the LED cooler and thermal performance matching the lumen packages.
* For spotlight and downlight designs from 800 to 3300 lumen.
* Thermal resistance range Rth 1.8°C/W.
* Modular design with mounting holes foreseen for direct mounting of Philips SLM engines.
* Diameter 96mm - standard height 20mm Other heights on request.
* Extruded from highly conductive aluminum.
EtraLED-PHI-9620 Philips Modular Passive Star LED Heat Sink Φ96mm.pdf
